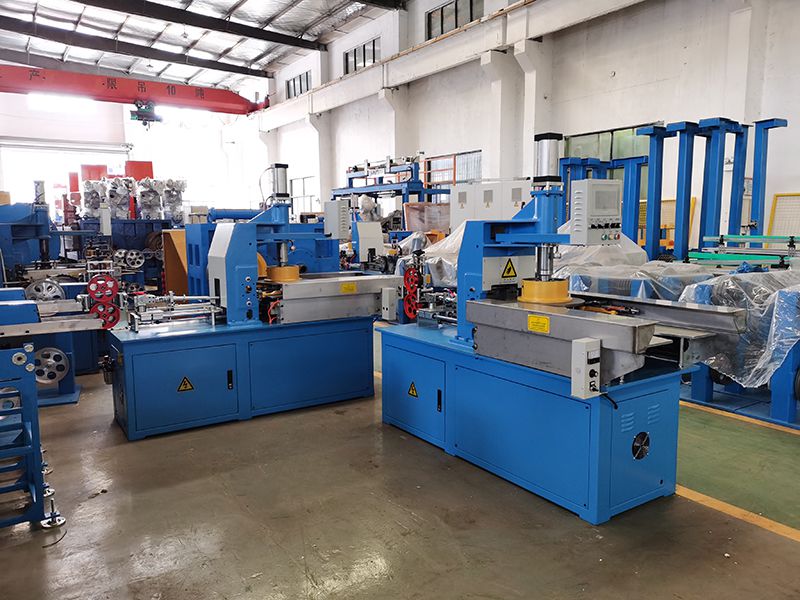

Microcomputer Automatic Coiling Machine | Cable Packaging Machine | SHJLPACK

The SHJLPACK Microcomputer Automatic Coiling Machine is engineered for high-efficiency and precision cable coiling. Equipped with a user-friendly touch panel and a servo motor wire feeding system, it ensures tight, well-wound coils and seamless integration with production lines. Features include automatic error detection, and microcomputer memory storage for up to 99 coil specifications, facilitating quick product changes. This machine accommodates coil outer diameters from Ø180-800mm, inner diameters from Ø120-320mm, and heights from 40-240mm, depending on the specific model.

Categories: ,

Content

Redefining Efficiency and Precision in Cable Coiling

The SHJLPACK Microcomputer Automatic Coiling Machine represents a leap forward in cable packaging technology. Designed for seamless integration into existing extrusion lines or as a standalone pay-off solution, this machine delivers consistently tight and secure cable coils, eliminating loose ends and enhancing the overall quality of your packaged products.

Key Features and Benefits

  • User-Friendly Touch Panel: Operation is simplified through an intuitive touch panel interface. This feature provides operators with precise control over the coiling process, minimizing training time and maximizing efficiency.

  • Servo Motor Wire Feeding System: Achieve superior coil aesthetics with the servo motor driven wire feeding system. This system ensures consistent tension and layering, resulting in perfectly wound coils every time.

  • Automatic Error Detection: Minimize downtime with the integrated error detection system. The machine promptly alerts operators to any operational issues, allowing for swift troubleshooting and resolution, maintaining continuous production flow.

  • Microcomputer Memory Storage: Boost production versatility with the microcomputer control system. It offers storage for up to 99 different coil specifications. This memory function enables rapid product switching, significantly reducing setup time and increasing overall output.

  • Seamless Product Switching: Changing product lines becomes effortless. Operators can quickly access stored data for different coil specifications, allowing the machine to be production-ready in moments, streamlining your manufacturing process.

SH-ACM Series Specifications

The SH-ACM series includes several models to accommodate a range of cable coiling needs. Below are the specifications for each model in a table format for easy comparison:

Feature SH-ACM-180-360 SH-ACM-200-460 SH-ACM-200-600 SH-ACM-220-600 SH-ACM-300-800
Rotating Speed (rpm) 1000 800 200 150 100
Outer Diameter of Coils (mm) Ø180 - 360 Ø200 - 460 Ø200 - 600 Ø220 - 600 Ø300 - 800
Inner Diameter of Coils (mm) Ø120 - 200 Ø140 - 220 Ø180 - 250 Ø180 - 250 Ø250 - 320
Height of Coils (mm) 40 - 80 50 - 100 60 - 180 60 - 200 80 - 240
Wrapping Material PVC, PE, etc. PVC, PE, etc. PVC, PE, etc. PVC, PE, etc. PVC, PE, etc.
Automatic Stacking & Palletizing Optional Optional Optional Optional Optional
