Touch Screen PLC Cable Coiling And Packing Machine

The SHJLPACK Touch Screen PLC Cable Coiling And Packing Machine represents an advanced solution for automating the final stages of wire and cable production. This integrated system streamlines the process from payoff to finished package, ensuring consistent quality and high throughput.

Automated Cable Packaging

This machine is designed for the complete automation of wire and cable coiling, banding, labeling, and shrink packing. By handling multiple finishing steps in one integrated line, it reduces labor requirements and potential for manual errors, leading to increased production efficiency and improved package presentation.

Precise Control System

At the heart of this machine lies a sophisticated control system utilizing a Touch Screen interface and PLC. This combination provides operators with intuitive control and precise management of the entire packaging process. Parameters such as coil length, winding speed, and banding sequence can be easily configured and monitored via the touch screen, ensuring consistent and accurate coiling and packaging.

Technical Specifications

Key performance parameters and dimensions of the machine are detailed below:

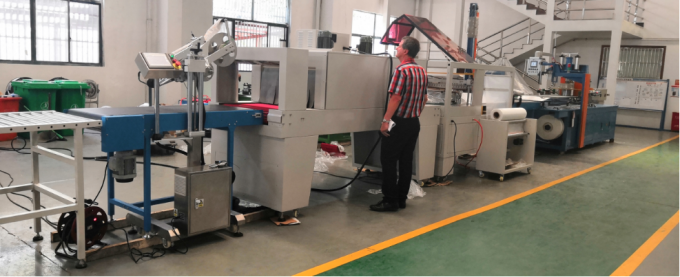

Integrated Production Line Components

The machine operates as part of a comprehensive line, managing the cable flow and packaging steps. The typical setup includes:

• SH-50 Motorized Payoff: Provides controlled and consistent feeding of the cable into the line.
• Horizontal and Vertical Accumulator & Tension Frames: Manage cable tension and provide buffer storage to ensure smooth, uninterrupted operation.

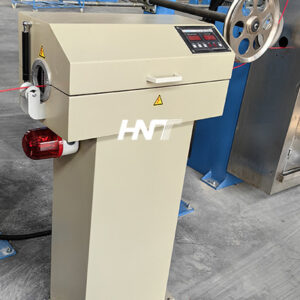

• Spark Tester: Performs online quality inspection of the cable insulation.
• SH-246 Auto Coiling Machine: The core unit responsible for accurately coiling the cable according to programmed specifications.
• Auto Strapping/Bundling Machine: Automatically secures the coiled cable using strapping or banding material.
• Conveyor: Transports the finished coils to the next stage.
• Film Cutting and Auto Shrinking Machine: Applies protective film and performs heat shrinking for final packaging.

Reliable Componentry

The SHJLPACK system is built for reliability and performance, incorporating components from reputable global brands. Drivers, Motors, and the PLC system are sourced from Mitsubishi, ensuring robust and precise operation. Other essential electronic components primarily utilize the Schneider brand, known for quality and durability.

This integrated approach and use of quality components ensure that the Touch Screen PLC Cable Coiling And Packing Machine delivers consistent, high-quality results for your cable packaging needs. The operation direction of the line can be customized to fit specific factory layouts.
