SHJLPACK packing lines are essential components for completing metal processing lines, ensuring efficient and reliable packaging of finished products, whether they are coils from slitting lines or bundles/batches from cut-to-length lines.
Automated Packing Systems
These automated systems are modular and integrated downstream from the main processing equipment. They handle the final steps of preparing materials for transport and storage, including strapping, stacking, weighing, and labeling.
Automatic Coil Packing Lines

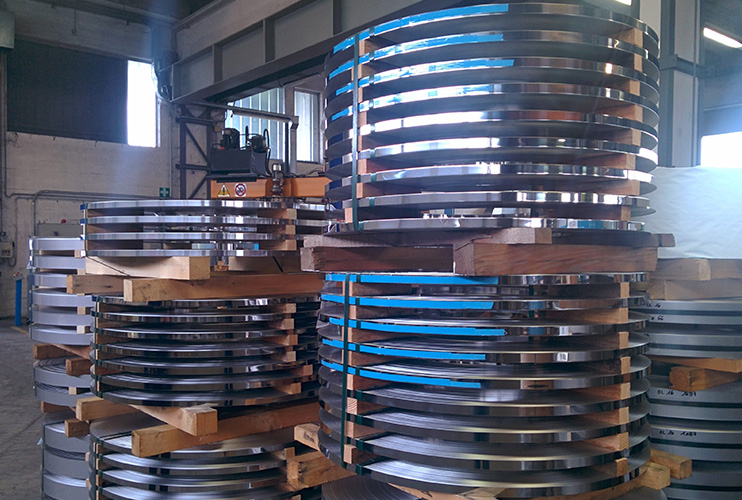

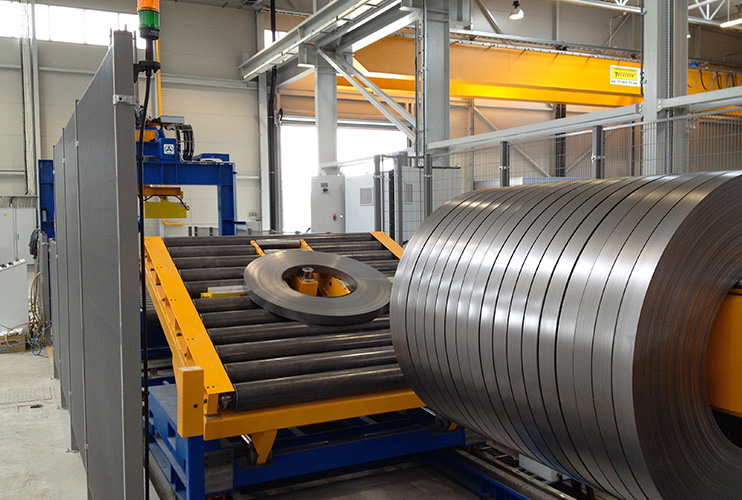

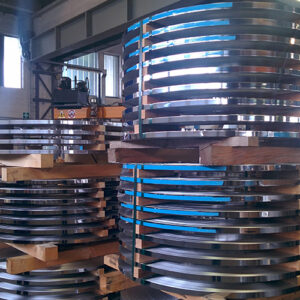

Designed as a completion for longitudinal cutting (slitting) lines, these systems automatically handle individual coils. They pick up each coil, perform radial and circumferential strapping to secure it, and then stack the coils to form a stable bundle or pile. The completed bundle can then be strapped onto a pallet, weighed, and labeled for identification and tracking.
Key operations for coil packing lines include:
- Radial strapping
- Circumferential strapping
- Weighing
- Stacking
Technical Data - Coil Packing Lines
| Parameter | Value |
|---|---|
| Max Coil Diameter | 2200 mm |
| Max Coil Weight | 6000 Kg |
| Max Bundle Weight | 12000 Kg |
Automatic Packing Lines for Batches

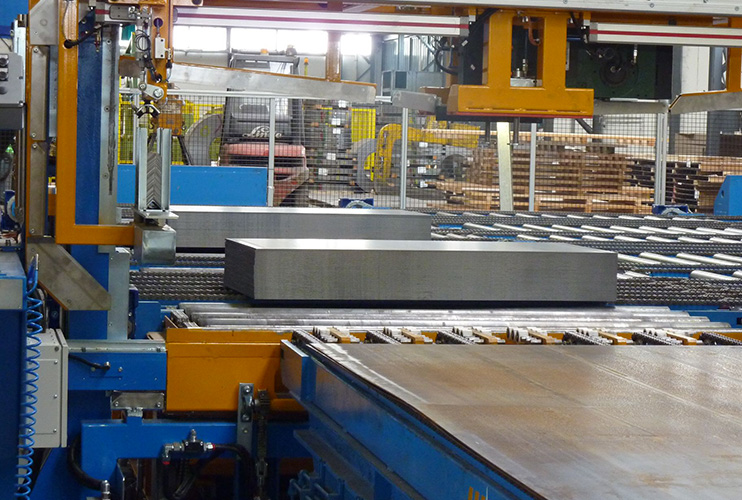

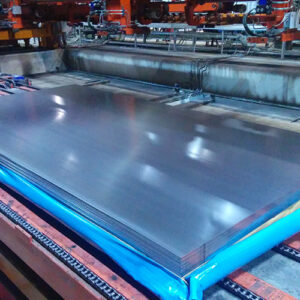

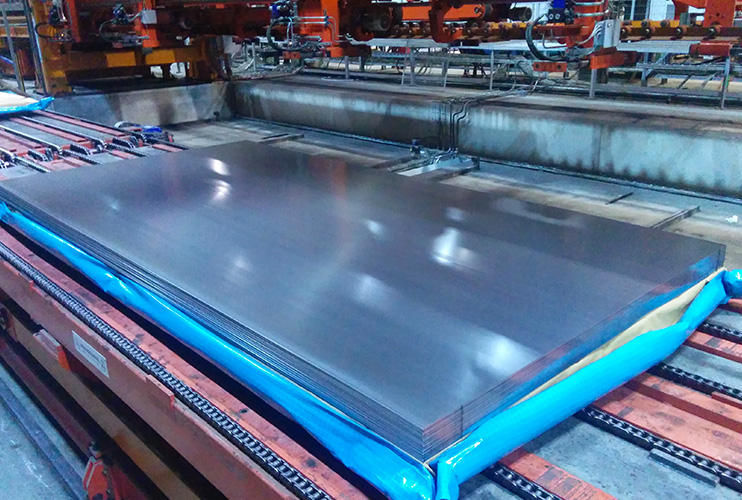

These lines are designed to complement cut-to-length lines, automating the packaging of sheets or plates into bundles or batches. The process includes automatic strapping in both transversal and/or longitudinal directions. Options are available for packaging with or without a wooden beam, or directly as a naked package or on a pallet. Following strapping and packaging, the batch is automatically weighed and labeled.
Key operations for batch packing lines include:
- Transversal strapping
- Longitudinal strapping
- Weighing
- Packaging (pallet, naked, with wooden beam)
- Labeling
Technical Data - Batch Packing Lines
| Parameter | Value |
|---|---|
| Material Thickness | 0.5 – 25.4 mm |
| Material Width | 500 – 2200 mm |
| Max Batch Weight | 200 – 6000 Kg |
Materials Processed
SHJLPACK packing lines are built to handle a wide range of materials commonly processed in metal fabrication, ensuring versatility and reliability across different applications. These materials include:
- Cold rolled steel
- Hot rolled steel
- Galvanized steel
- Pre-painted steel
- Cold rolled stainless steel
- Hot rolled stainless steel
- Aluminum
- High-strength materials
- Leveling and cutting of Duplex and Domex
- Ultra-high-strength materials
These automated packing solutions from SHJLPACK provide efficient and secure handling of finished products, integrating seamlessly with upstream processing equipment to optimize workflow and prepare materials for distribution.
