Cable Coil Strapping and Shrink Wrapping | Cable Packaging Machine | SHJLPACK

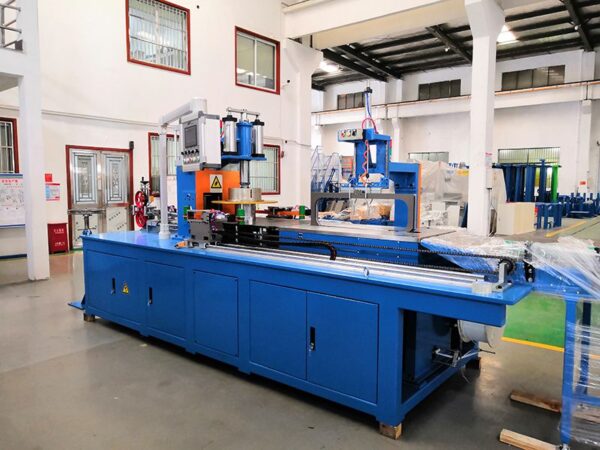

The SHJLPACK Automatic Cable Coil Strapping and Shrink Wrapping Machine is engineered to streamline cable packaging processes. This robust machine integrates cable coiling, strapping, and heat shrink wrapping into a seamless automated line. It accommodates wire sections from 1.5 mm² to 35.0 mm² and coil diameters from Ø100 mm to Ø600 mm, with production speeds up to 400 m/min depending on the model. Key features include secure strapping with adjustable tension, user-friendly PLC touchscreen controls, and an efficient memory function for storing multiple cable specifications, enhancing operational efficiency and ensuring neatly packaged cable coils ready for distribution.

Category:

Technical Data

Specifications

Feature SH-ACS-60 (Small Cable) SH-ACS-60 (Medium Cable) SH-ACS-350 (Large Cable)
Applicable Wire Section 1.5 - 6.0 mm² 1.5 - 6.0 mm² 6.0 - 35.0 mm²
Production Speed 400 m/min 200 m/min 200 m/min
Outer Diameter of Coils Ø100 - 300 mm Ø100 - 300 mm Ø400 - 600 mm
Inner Diameter of Coils Ø180 - 250 mm Ø180 - 250 mm Ø180 - 250 mm
Height of Coils 50 - 100 mm 50 - 100 mm 100 - 180 mm
Material of Strips PP PP PP
Packing Method Hollow Heat Shrinking Hollow Heat Shrinking Hollow Heat Shrinking
Automatic Stacking & Palletizing Optional Optional Optional

Key Features and Benefits

  • Secure Cable Strapping: Ensures cable coils are firmly secured with options for single, double, or quadruple strapping points, preventing unraveling and maintaining coil integrity during handling and transport.
  • User-Friendly PLC Touchscreen Controls: Simplifies operation and reduces training time with an intuitive interface for setting parameters, monitoring performance, and adjusting settings.
  • Servo Motor Driven Flat Cable System: Delivers consistent and neat cable winding, enhancing the professional appearance of the packaged coils.
  • Efficient Memory Function: Stores up to 99 different cable coil specifications, allowing for quick and easy changeovers between product types, minimizing downtime and maximizing productivity.
  • Adjustable Bundling Tension: Provides flexibility to customize strapping tightness according to the specific characteristics of different cable types, preventing damage while ensuring secure packaging.
  • Automatic Error Detection: Equipped with a smart error detection system that promptly alerts operators to any malfunctions or issues, facilitating timely intervention and minimizing production disruptions.
  • Versatile Integration: Can operate as a standalone machine or be seamlessly integrated into existing cable extrusion and production lines, offering flexible deployment options.
  • Optional Automatic Stacking and Palletizing: Further automates the end-of-line packaging process, reducing manual labor and increasing overall efficiency with integrated stacking and palletizing capabilities.
