Efficient Cable Coil Packaging with Heat Shrink Technology

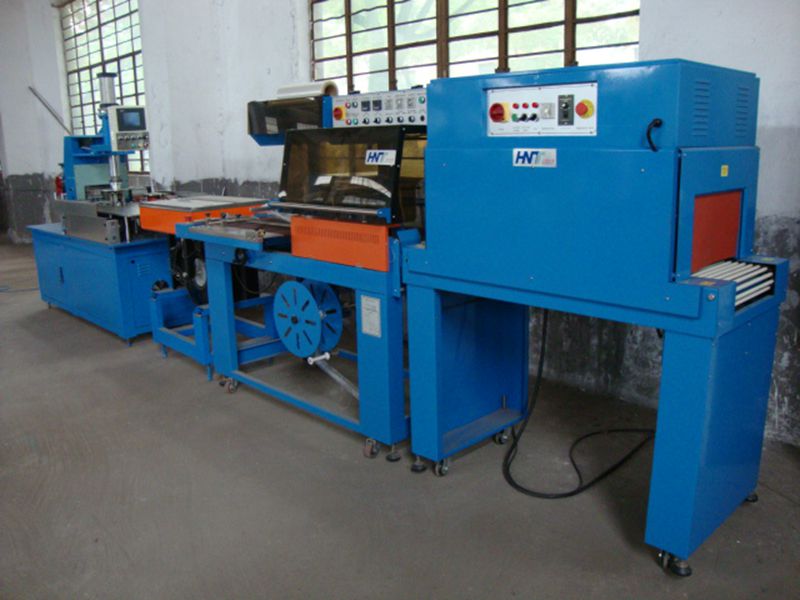

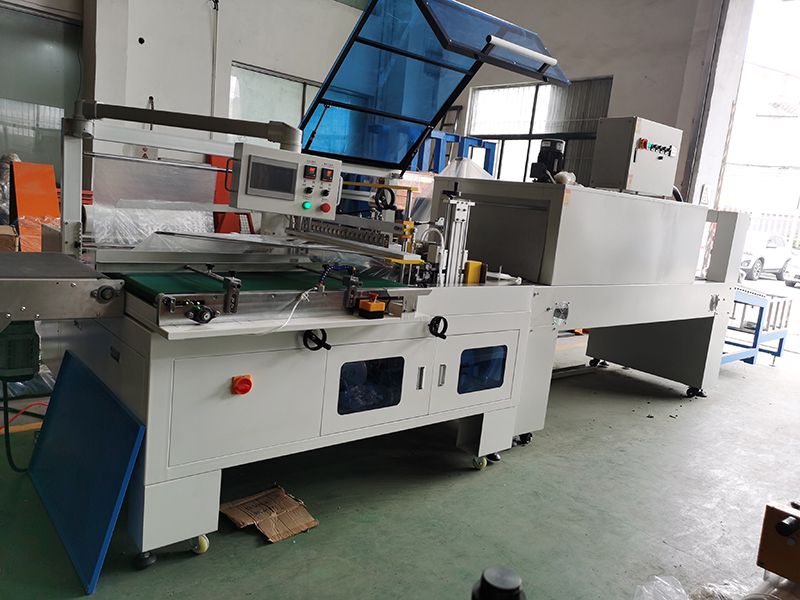

Our fully enclosed Cable Coil Shrink Wrapping Machine is specifically designed to streamline the packaging process for wire and cable coils. After the coils are cut to the required size, they are automatically fed into the machine via a conveyor belt, ensuring a precise and efficient heat shrink packaging operation.
Key Features
Based on the reliable SH-P300 design, this machine incorporates several features for high performance and ease of use:
- Advanced Sealing Knife: Utilizes an anti-stick, high-temperature alloy "L" type sealing knife. This ensures neat, secure seals without cracking, coking, or smoking.
- Teflon Coating: The sealing knife is plated with a Teflon non-stick layer, preventing film adhesion.
- Automatic Transfer: After sealing and cutting, coils are automatically transferred to the heat shrinking unit via a conveyor belt for the final shrink packaging.
- Adjustable Conveyor: Conveyor belt tension and conveying time can be adjusted, ensuring stable tension for smooth feeding of coils into the shrink bag.

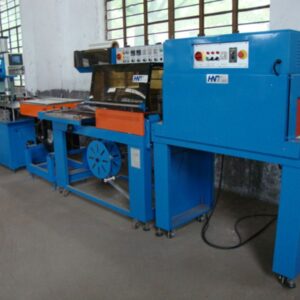

- Energy-Efficient Shrink Tunnel: Features a double-layer insulation device to minimize heat loss and reduce energy consumption.
- Uniform Heat Distribution: A fan within the heat shrink machine ensures the heat source is evenly distributed throughout the furnace.
- Temperature Control: The temperature in the heat shrinking machine is adjustable, typically ranging from 150℃ to 200℃.
- Enhanced Safety: All operational parts are equipped with safety guards and emergency stop devices to protect the operator.
- Intuitive Control: An HMI and PLC control system allows for easy modification, storage, and adjustment of process parameters like wire diameter and line speed via a user-friendly touchscreen interface.
Technical Specifications
The machine accommodates a variety of cable coil sizes:
| Parameter | |||||
|---|---|---|---|---|---|
| Rotating Speed (rpm) | 1000 | 800 | 200 | 150 | 100 |
| Outer Diameter of Coils (mm) | Ø180 - 360 | Ø200 - 460 | Ø200 - 600 | Ø220 - 600 | Ø300 - 800 |
| Inner Diameter of Coils (mm) | Ø120 - 200 | Ø140 - 220 | Ø180 - 250 | Ø180 - 250 | Ø250 - 320 |
| Height of Coils (mm) | 40 - 80 | 50 - 100 | 60 - 180 | 60 - 200 | 80 - 240 |
| Wrapping Material | PVC, PE and etc. | ||||
| Automatic Stacking & Palletizing System | Optional | Optional | Optional | Optional | Optional |
This machine provides a reliable and efficient solution for finishing cable coil production with a professional, protective heat shrink package.
