Product Overview

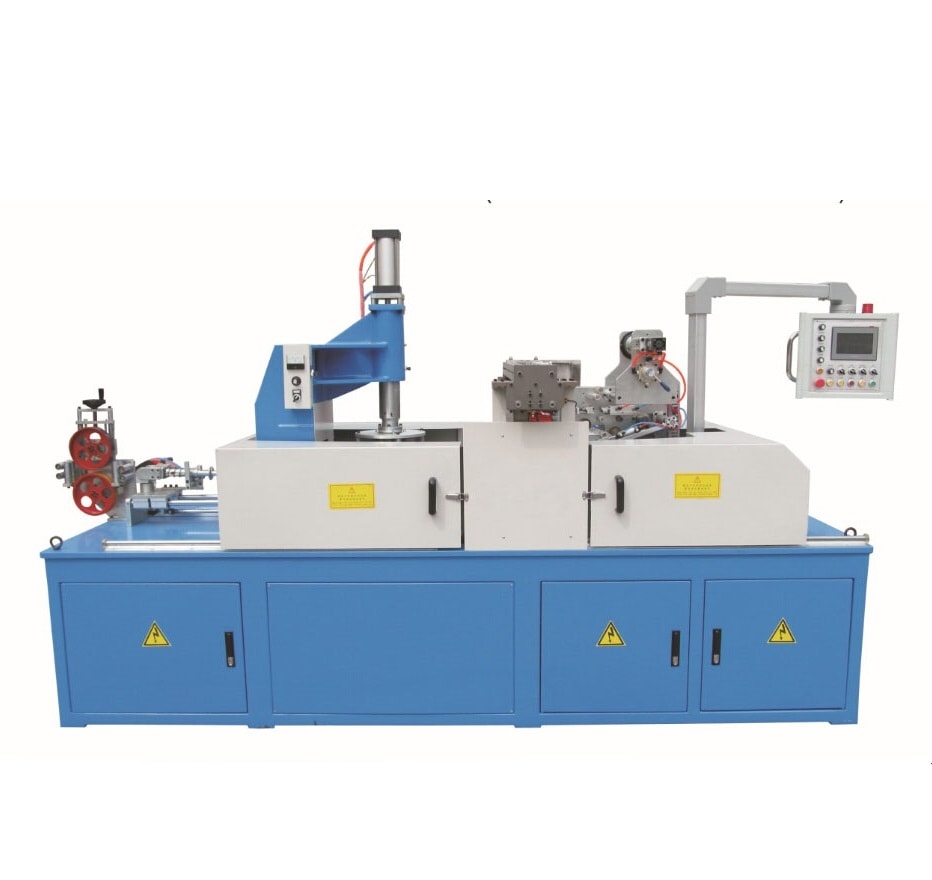

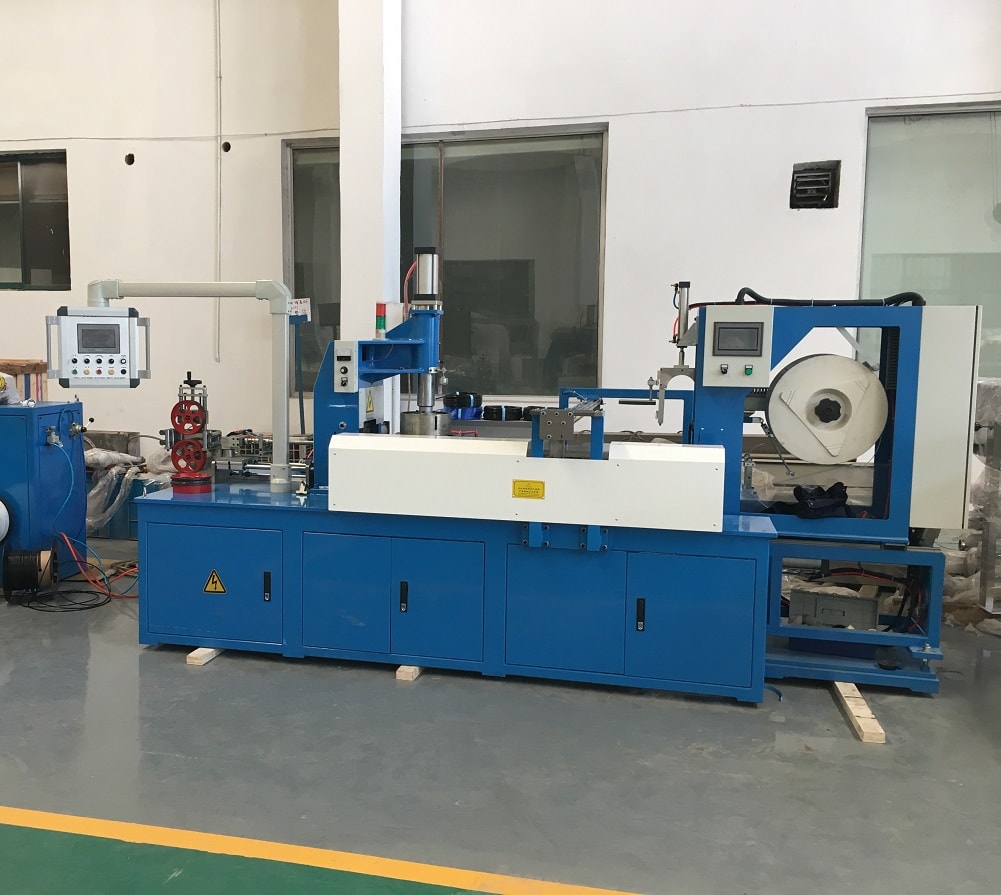

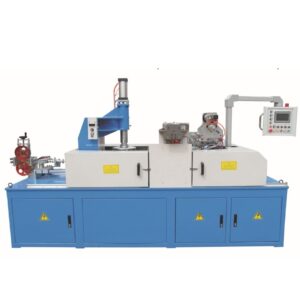

The SHJLPACK automatic cable coil strapping machine is an automated system designed to integrate directly into production lines or connect with payoff equipment. This comprehensive system includes components for accumulating, coiling, and strapping cable coils.

How it Works

Utilizing a reliable strapping head, the machine automatically joins the ends of polypropylene (PP) strap using secure heat welding. Strap tension is adjustable for different coil requirements. After strapping is complete, a coil holder automatically picks up and moves the finished coil to the next stage. The machine can be configured for 1, 2, or 4 straps per coil, depending on the required security.

Application

This automatic cable strapping machine is ideal for offline coil packaging. It performs multiple functions including:

• Counting cable length
• Automatic cutting
• Automatic coil making
• Automatic strapping with PP strap

Designed according to CE guidelines and built upon proven SHJLPACK cable coiling technology, this machine provides a reliable and efficient platform for high-speed, high-success-rate strapping with a focus on easy maintenance and safety.

Key Features

The SHJLPACK automatic cable coil strapping machine includes advanced features for automated operation:

• Control System: PLC and HMI control for fully automatic processes.
• User Interface: Parameters can be easily set in English on the control program.
• Adjustable Settings: Coiling outer diameter (OD) and pipe cutting length are adjustable.
• Coil Handling: Two protective guards secure and move the coiled tube.
• Error Detection: Automatic error detection and alarming for troubleshooting.
• Position Sensing: Sensors automatically detect and verify tube position.
• Coil Stability: A pressing device ensures the pipe coil is fixed and stable during processing.

Technical Specifications

Strapping Head Details
