Wire coil compacting and strapping machine | Wire coil compactor

Efficient Wire Coil Compacting and Strapping Solutions

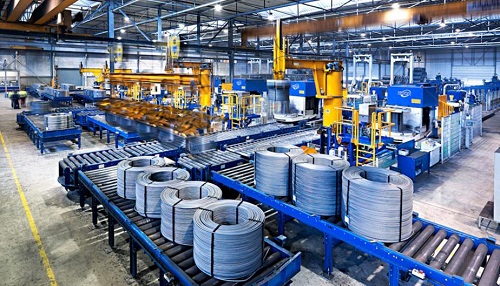

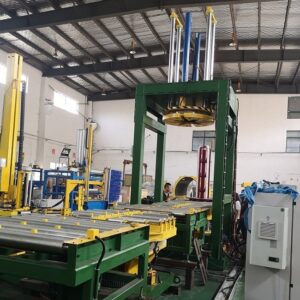

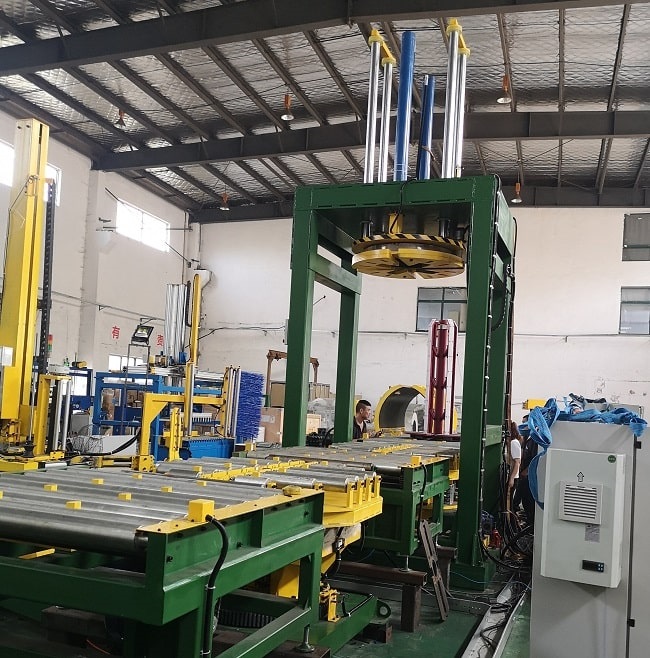

Handling large volumes of wire coils presents challenges in logistics, storage, and transport. The SHJLPACK wire coil compacting and strapping machine offers a robust solution to these issues by streamlining the packaging process, ensuring coils are tightly bound and protected.

This equipment is designed for substantial production demands, providing a well-packed product that is better protected against potential damage, moisture, and dust. Both semi-automatic and full-automatic systems are available, with specific designs tailored by our engineering team to meet customer requirements.

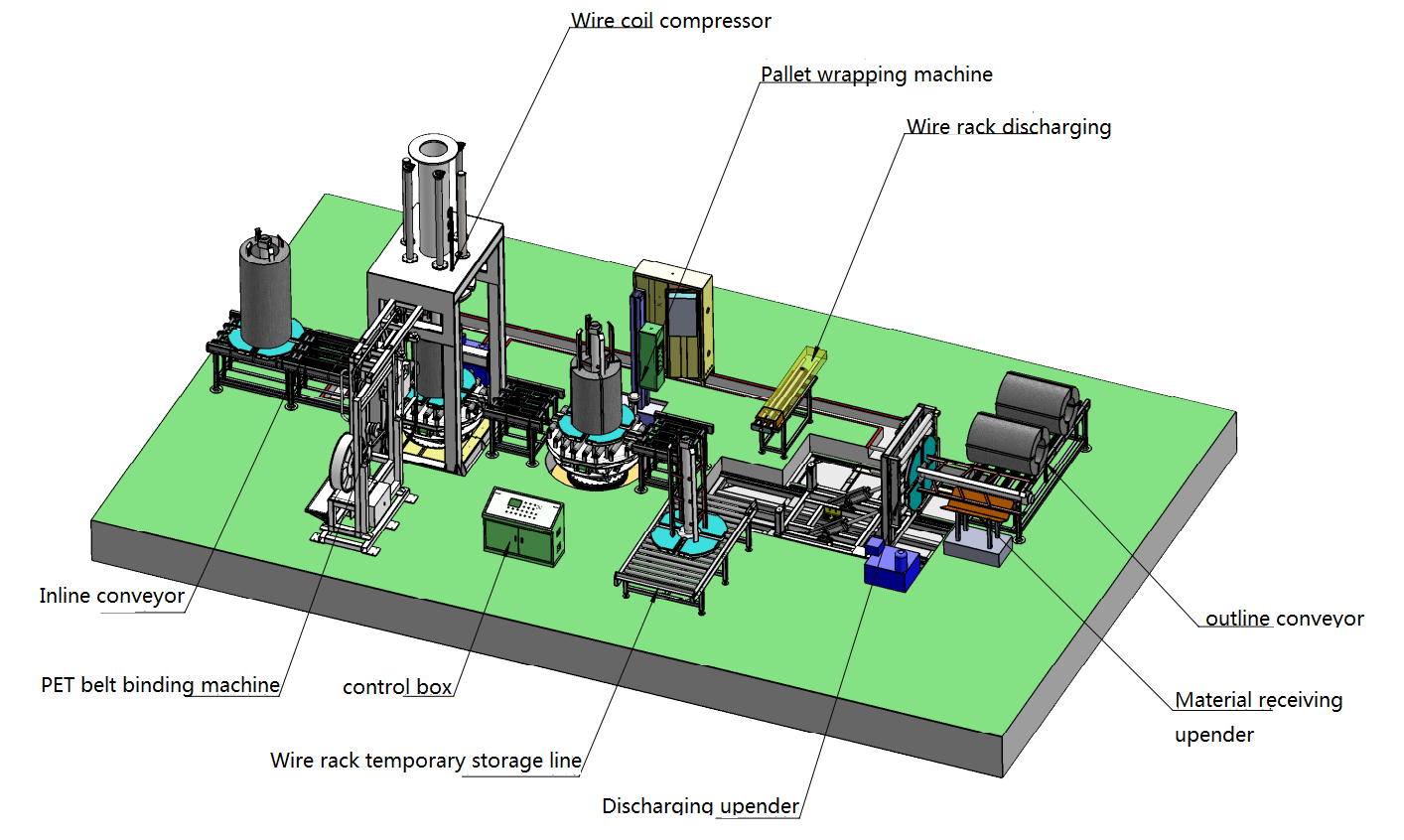

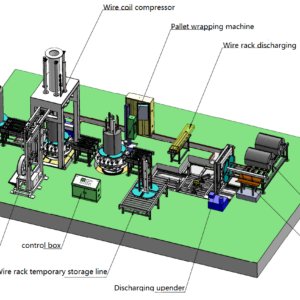

From compaction to strapping, the SHJLPACK line provides a reliable packaging solution. It is compatible with various packaging materials, including PET or steel strap, and can be integrated with additional equipment like wrapping stations or stackers for a fully automated line.

Addressing Traditional Coil Handling Pain Points

Inefficient coil handling methods can lead to significant drawbacks:

• High Damage Rate: Coils can loosen or deform during transport without proper compaction, leading to potential damage.
• Excessive Labor: Manual handling of heavy coils is labor-intensive and poses ergonomic risks.
• Inconsistent Tension: Suboptimal strapping can result in coil slippage or damage to the wire.
• Storage Inefficiency: Loosely packed coils occupy more valuable warehouse space.

Our compacting and strapping machine directly addresses these issues, offering a more efficient and reliable process.

Core Machine Functions

The SHJLPACK wire coil compacting and strapping machine performs several critical functions:

• Seamless Conveyor Integration: Automatically receives coils from upstream processes via a conveyor, minimizing manual intervention.
• Intelligent Hydraulic Compacting: Uses a multi-stage hydraulic press to compress coils to a uniform, predefined density.
• PET/Steel Dual-Mode Strapping: Supports both PET and steel strapping bands, allowing flexibility based on transport requirements with precise tension adjustments.
• Automatic Unloading: Discharges the strapped coil onto a downstream conveyor or pickup station.

These functions significantly cut handling time and improve overall reliability.

Technical Architecture Highlights

The system's design incorporates advanced modules for optimal performance:

Module 1 – Conveyor Integration and Automated Pick-Up

• Precision Positioning: Utilizes sensors for accurate coil placement (typically ±0.5 mm tolerance).
• Enhanced Conveyor Material: Often employs robust, coated belts designed to handle heavy loads and sharp wire ends.

Module 2 – Multi-Stage Hydraulic Compacting

• Variable Pressure Range: Features an intelligent hydraulic press with adjustable pressure (e.g., 80–350 kN) based on coil characteristics.
• Servo Motor Efficiency: Servo-driven hydraulic pumps can offer significant energy savings (up to 23% compared to legacy systems) by only consuming power when needed.
• Overload Protection: Systems may include features for real-time pressure monitoring to prevent damage.

Module 3 – Smart Strapping Workstation

• PET vs. Steel Strap: Supports switching between PET straps (corrosion-resistant, light) and steel straps (superior tensile strength for heavy loads or high-impact transit). Dual-mode designs allow quick material changes.
• Dynamic Tension Control: A closed-loop system continuously measures and adjusts strapping tension (typically within a ±2% error margin) for a stable package.
• Rapid Coil Band Change: Includes features for quickly loading and threading new strapping coils of common sizes (e.g., 13 mm or 19 mm).

Key Advantages

Investing in a SHJLPACK compacting and strapping machine offers distinct benefits:

1. Compact Footprint: Can occupy significantly less floor space compared to older or manual systems.
2. Predictive Maintenance: Integrated sensors can provide data for monitoring wear and scheduling maintenance, reducing unplanned downtime.
3. Broad Material Compatibility: Capable of handling a range of wire diameters (e.g., Φ5 mm to Φ30 mm) by adjusting settings.
4. Energy Efficiency: Designed with energy-saving components like servo-hydraulic systems.
5. Custom Integration: Offers interfaces (like open API) for data integration with factory management systems (ERP, MES).
6. Enhanced Safety: Reduces the need for manual handling of heavy coils.

Technical Parameter Table

Parameter	Specification
Compacting Force	80–350 kN (programmable)
Cycle Time	≤22 seconds/coil (incl. strap)
Power Supply	380 V / 50 Hz ±10%
Noise Level	<75 dB(A) @ 1 m distance
Protection Rating	IP54 standard (custom IP65)
Supported Strap Width	13 mm or 19 mm (PET/Steel)
Conveyor Load Capacity	Up to 2,000 kg/m

Note: Actual configurations may vary based on specific requirements.

Frequently Asked Questions

• Is the machine compatible with non-cylindrical coils?
  Certain models may include side-pressure mechanisms to handle rectangular or elliptical bundles.
• How does PET strap perform in humid conditions?
  PET straps can be manufactured with UV-resistant additives to maintain properties in varying climates.
• What is the recommended hydraulic maintenance?
  General recommendations include using VG46 anti-wear hydraulic oil and regular filter inspections.
• Do I need proprietary strap materials?
  Typically, machines accept standard market straps within specified width and diameter limits.
• How is remote troubleshooting handled?
  Many systems offer remote access interfaces, allowing technicians to assist with diagnostics and support.
