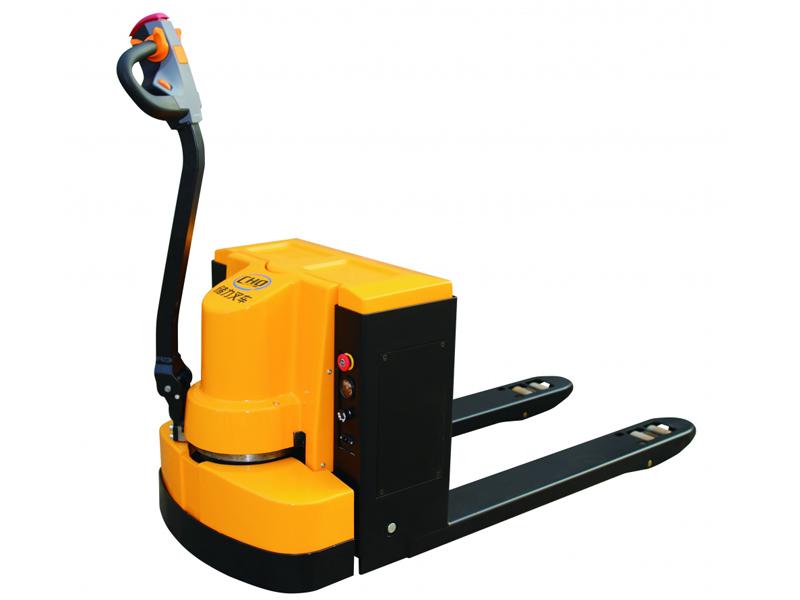

Walkie pallet jacks, also known as walking pallet jacks or electric pallet trucks, are essential tools for efficient material handling, particularly in areas where space is limited. The QBA20C model is engineered to provide robust performance and flexibility for various warehousing and logistics applications. Its compact design makes it ideal for navigating narrow aisles and congested environments like loading docks, wharfs, and storage facilities.
Equipped with AC power, the QBA20C offers reliable and consistent operation. It boasts a significant load capacity, capable of handling up to 2000 kg or 2500 kg, depending on the specific configuration.
Key Features and Benefits
The design of the QBA20C focuses on usability, durability, and low maintenance:
- Structure: Features a well-thought-out structure with independent compartments for the hydraulic pump and lithium-ion battery, which can facilitate maintenance and organization of components.
- Integral Fork Design: The pallet fork is formed as a single, integral unit, contributing to its high strength and durability under heavy loads.
- Maintenance-Free Battery: Utilizes a high-capacity sealed battery. This type of battery requires no maintenance, such as adding distilled water, throughout its service life, reducing downtime and operating costs. It is designed for long operational periods.
- Variable Speed Control: A continuously variable speed control unit allows the operator to adjust the travel speed precisely, catering to different working conditions and individual operator preferences for enhanced control and safety.
Technical Specifications
Understanding the technical parameters is crucial for selecting the right equipment. The QBA20C Walkie Pallet Jack comes with the following specifications:
| Feature | Parameter | Unit | Value (2000kg Cap) | Value (2500kg Cap) |
|---|---|---|---|---|
| Capacity | Q | kg | 2000 | 2500 |
| Load center | c | mm | 500 | 500 |
| Service weight | With battery | kg | 360 | 360 |
| Chassis and Wheel | ||||
| Wheel size | Steer wheel | mm | Φ250×75 | Φ250×75 |
| Wheel size | Load wheel | mm | Φ80×70 | Φ74×70 |
| Wheel layout | Three-point support | Three-point support | ||
| Rear wheel distance | b11 | mm | 525 | 525 |
| Size | ||||
| Max. lift height | h3 | mm | 195 | 195 |
| Min. lift height | h13 | mm | 85/75 | 85/75 |
| Overall length | l1 | mm | 1710 | 1710 |
| Overall width | b1 | mm | 685 | 685 |
| Single fork size | s/e/l | mm | 57/160/1150 | 57/160/1150 |
| Fork width | b5 | mm | 550/685 | 550/685 |
| Turning radius | Wa | mm | 1510 | 1510 |
| Handle max./min. hgt | h14 | mm | 1220/680 | 1220/680 |
| Performance | ||||
| Move speed (load/unload) | Km/h | 3.5/4 | 3.5/4 | |
| Grade ability (load/unload) | % | 3/10 | 3/10 | |
| Brake | Electromagnetic | Electromagnetic | ||
| Motor | ||||
| Driving motor power | kw | 1.2 | 1.2 | |
| Lifting motor power | kw | 0.8 | 0.8 | |
| Battery | ||||
| Voltage/capacity | V/Ah | 24/120 | 24/135 | |
| Battery weight | kg | 39.1×2 | 39.1×2 | |
| Battery size (LWH) | mm | 406×176×233 | 406×176×233 |
This walking pallet jack is designed for reliable operation in demanding material handling environments, providing a balance of power, maneuverability, and ease of use for operators. Its specific features and technical parameters make it a suitable choice for various applications requiring efficient movement of palletized goods.
