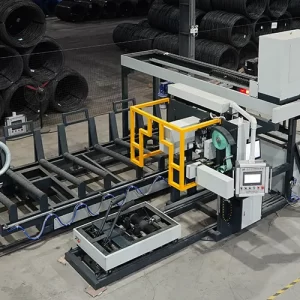

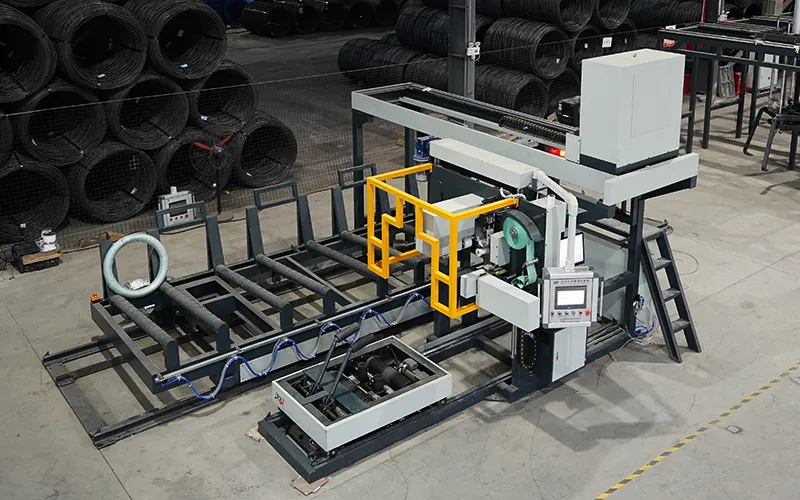

Vertical Wire Coil Packaging Line LS-35

Wire coils require robust packaging to ensure they remain in excellent condition during transit and storage. Exposure to elements like dust, dirt, and moisture can compromise the quality of the wire. Furthermore, properly packaged coils are easier and safer to handle and stack. The Vertical Wire Coil Packaging Line LS-35 addresses these needs by applying protective packaging materials around the coil's outer diameter while it is standing upright.

How Vertical Coil Packaging Works

Vertical packaging involves placing the wire coil on a support platform, typically part of a conveying system. The wrapping machine features a rotating ring or arm that moves around the stationary or slowly rotating coil. Packaging material, such as stretch film, VCI paper, or woven belt, is dispensed from a carriage mounted on the rotating element and wrapped securely around the coil's exterior surface. This method ensures complete coverage and a tight, protective layer.

Key Features (Implied by Machine Type)

While specific parameters for the LS-35 model are not detailed, a typical automatic vertical wire coil packaging line like the LS-35 would include features focused on efficiency, reliability, and safety:

• Automatic Operation: Designed to minimize manual intervention from coil feeding to packaging completion.
• Vertical Wrapping Method: Ideal for coils that are handled or stored on end, ensuring stability during the wrapping process.
• Adjustable Wrapping Tension: Allows control over how tightly the packaging material is applied, providing optimal protection without damaging the coil.
• Integrated Conveying System: Facilitates smooth movement of coils into and out of the packaging station, integrating with existing production lines.
• Control Interface: User-friendly controls, potentially PLC-based, for easy operation and adjustment of packaging parameters.
• Packaging Material Versatility: Ability to use various protective films and materials suitable for wire coils.

Benefits of Using the LS-35

Implementing an automatic packaging line like the LS-35 offers several advantages for wire manufacturers and processors:

• Enhanced Product Protection: Shields wire coils from environmental factors and physical abrasion.
• Improved Handling and Storage: Creates stable, unitized packages that are easier to move and stack.
• Increased Efficiency: Automates a labor-intensive process, speeding up throughput.
• Consistent Packaging Quality: Ensures each coil is wrapped uniformly, providing reliable protection.
• Reduced Material Waste: Automatic systems can optimize material usage compared to manual methods.

The LS-35 model represents a solution specifically tailored for vertical wire coil packaging, designed to integrate into production workflows and deliver consistent, protective results for finished wire products.
