Efficient Steel Wire Coil Wrapping with the SH-PW-800

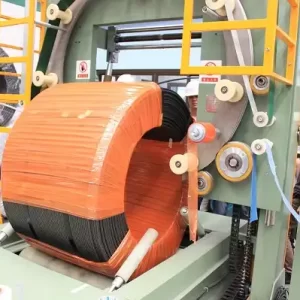

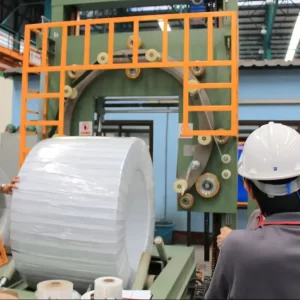

The SH-PW-800 steel wire wrapping machine is designed to provide efficient and reliable packaging for steel wire coils, including pre-stranded and PC wire types. This horizontal coil wrapping machine offers a robust solution for securing wire coils, ensuring they are protected during storage and transport. It comes equipped with a trolley system to facilitate easy loading and unloading of coils, streamlining the packaging process.
Key Features
The SH-PW-800 model incorporates several features to enhance performance and user experience:
- Flexible Operation: Choose between fully automatic or semi-automatic operation modes to match production needs.
- Material Versatility: Compatible with a wide array of packing materials such as stretch film, PE film, LLDPE film, HLDPE film, paper, woven belts, compound paper, crepe paper, non-woven fabric, and sackcloth tape.
- Secure Wrapping: Features anti-wear polyurethane active and passive friction wheels and a cohesive mold structure device for excellent slip resistance, promoting safety and resulting in a neatly packaged product.
- Adjustable Settings:
- Ring center height can be adjusted to suit different coil specifications.
- Packing material overlapping extent and tension levels are customizable.

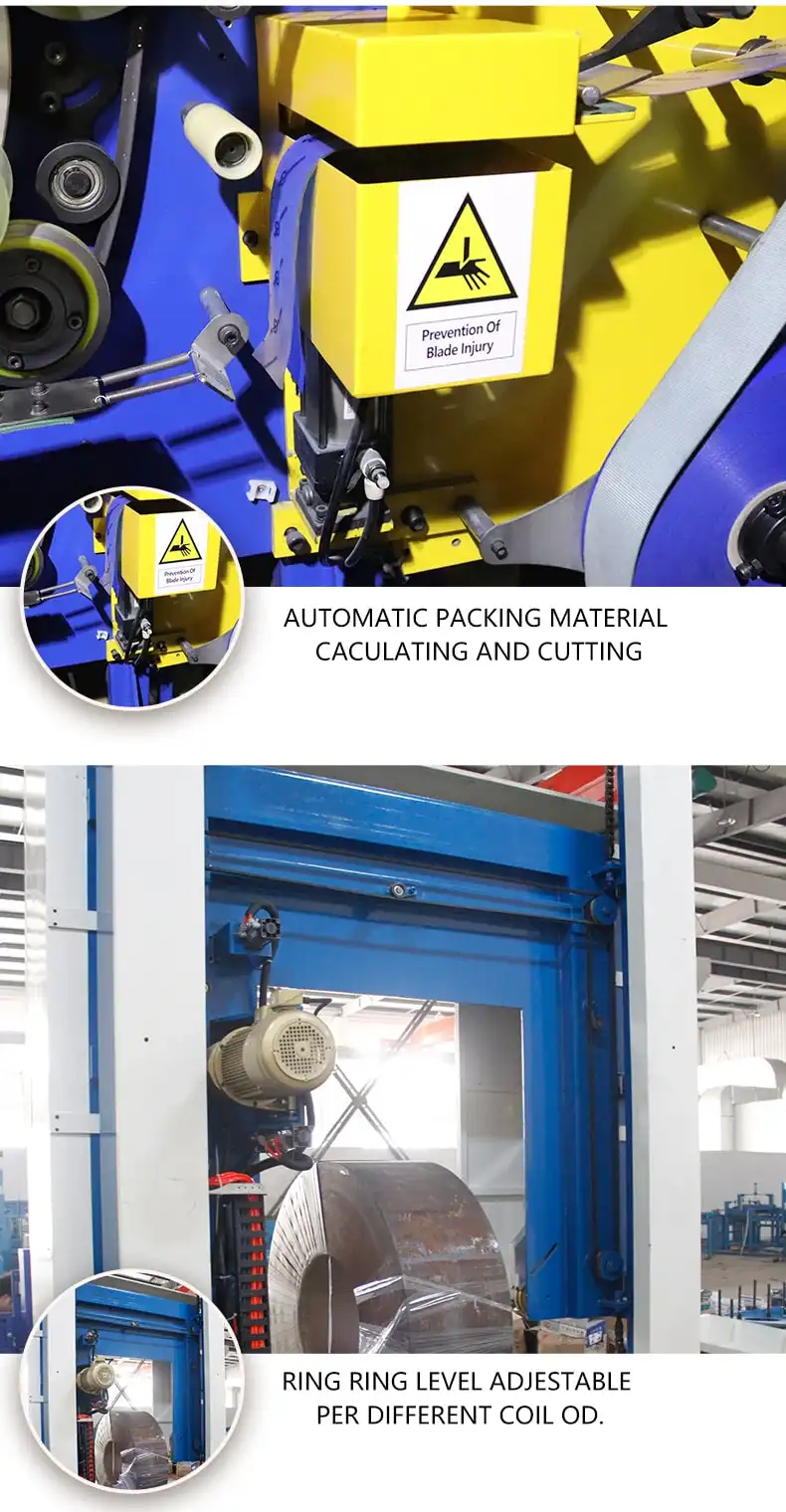

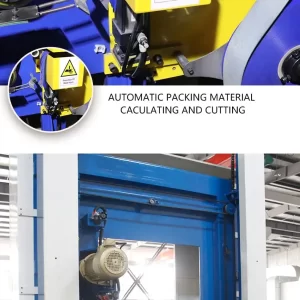

- Integrated Cutting: Includes specially designed cylinder cutters capable of handling various packing materials effectively.
Technical Specifications
Below are the key technical parameters for the SH-PW-800 steel wire coil wrapping machine:
| Parameter | Specification |
|---|---|
| Model | SH-PW-800 |
| Voltage | 380V 50Hz 3Phase |
| Power | 3.4 kW |
| Steel Wire Coil ID | >500 mm |
| Steel Wire Coil OD | 800-1400 mm |
| Steel Wire Coil Width | 300-800 mm |
| Steel Wire Coil Weight | 200-3000 kg |
| Compatible Packing Material Types | PVC, LLDPE, PE, Paper, HDPE, Stretch Film, Woven Belts, etc. |
| Packing Material Roll Specs | ID: 50 mm, OD: 100-250 mm, Width: 100-300 mm |
| Overlapping Rate | 10%-90% |
| Air Supply | 4-6 kgf/m² |
Note: The machine can often be customized to handle coil sizes outside this standard range.
Operation and Design Details

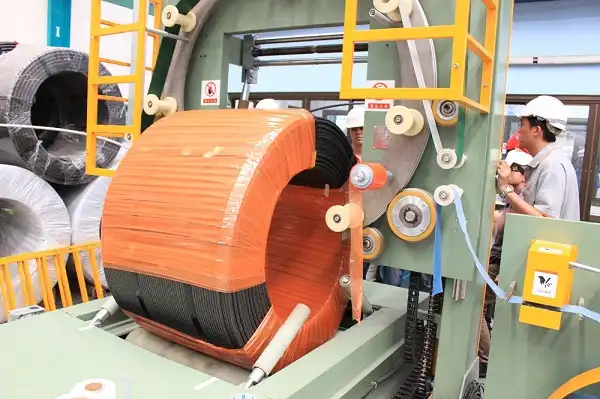

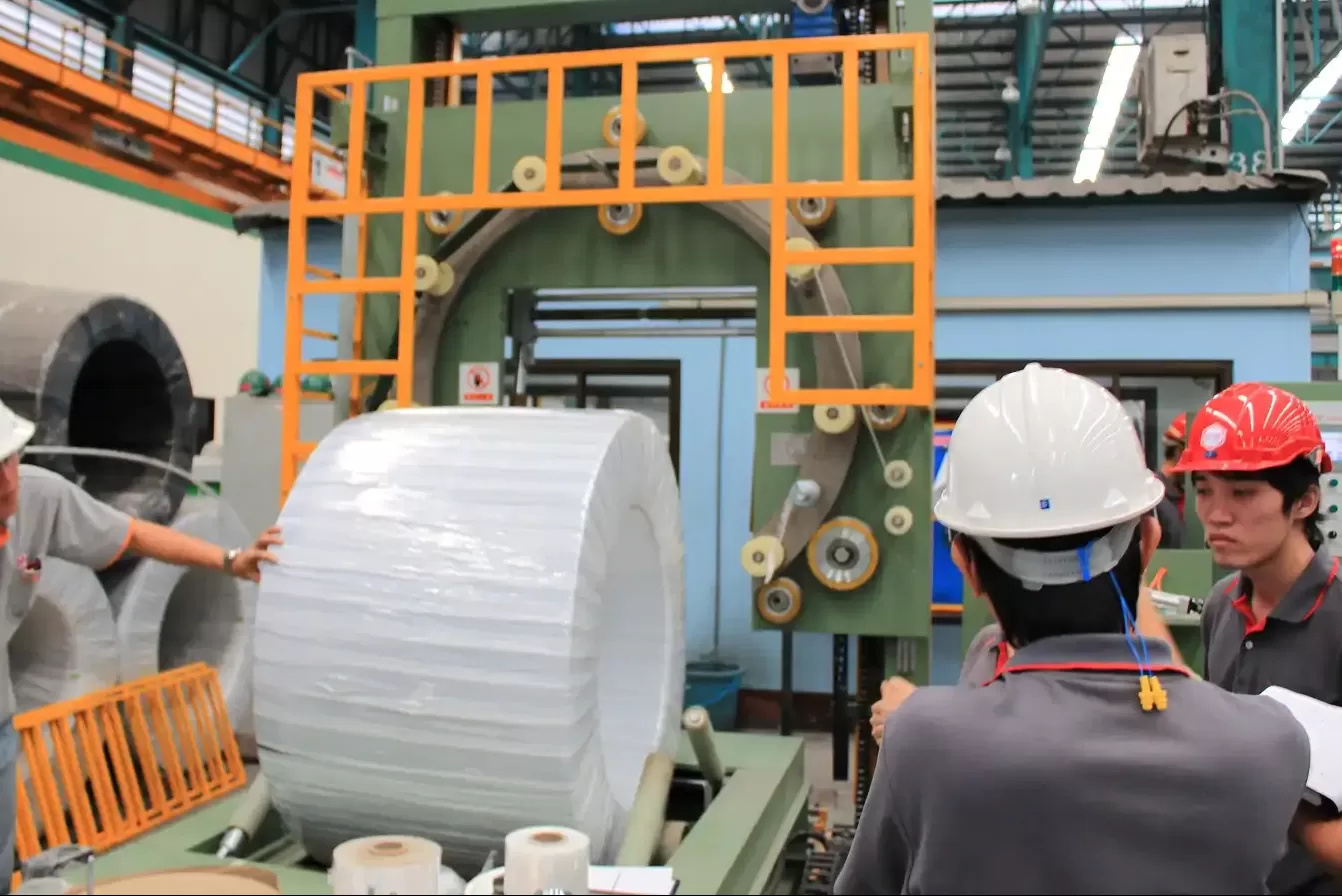

The SH-PW-800 is designed for efficient workflow. Coils are typically loaded onto the machine using a crane or brought to the packing station via a trolley or coil tipper/tilter. During the wrapping process, the steel coil remains stationary while the machine ring rotates around it, applying the packing material.

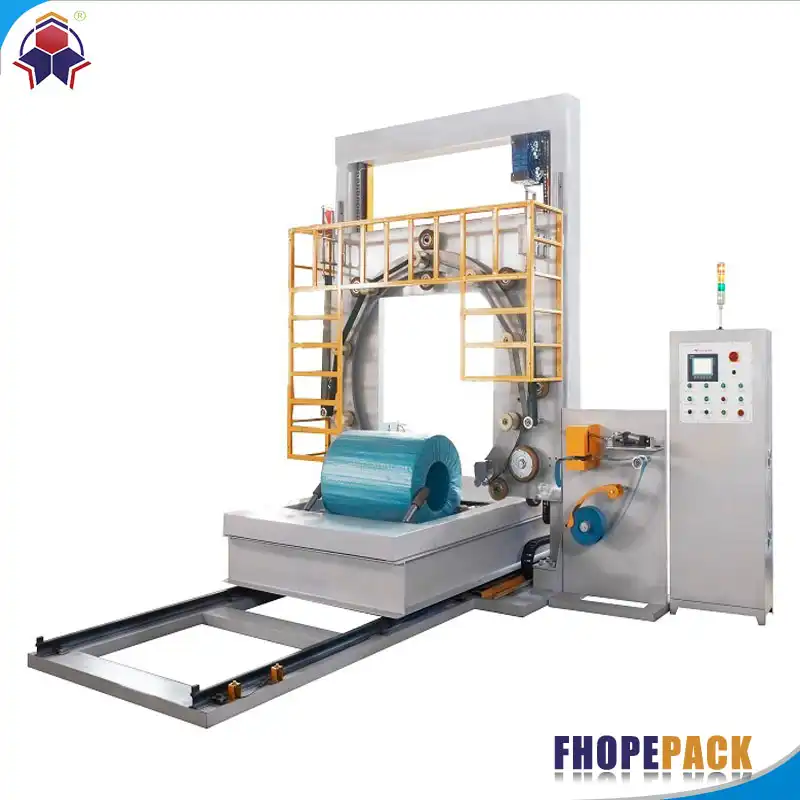

The machine itself moves on floor rails, allowing it to service multiple packing stations or adjust its position. Support rolls that hold the coil can be stationary or mobile, sometimes integrated with the packing station on a movable truck. Limited sensors are incorporated at the packing station to assist with coil positioning and operation management. Accessory equipment such as a C-hook and mobile coil trolley are available to further support material handling.
Optional Functions
To further enhance the machine's capabilities and integrate it into specific production lines, several options are available:
- Additional trolley with a longer track for expanded reach.
- Automatic packing material feeding and cutting mechanism for increased automation.
- Safety interlock and fence systems.
- Light beam safety fences.
- UL standard compliance.
The SH-PW-800 steel wire wrapping machine from SHJLPACK provides a robust, flexible, and efficient solution for securing various types of steel wire coils, tailored to meet industrial packaging demands.
