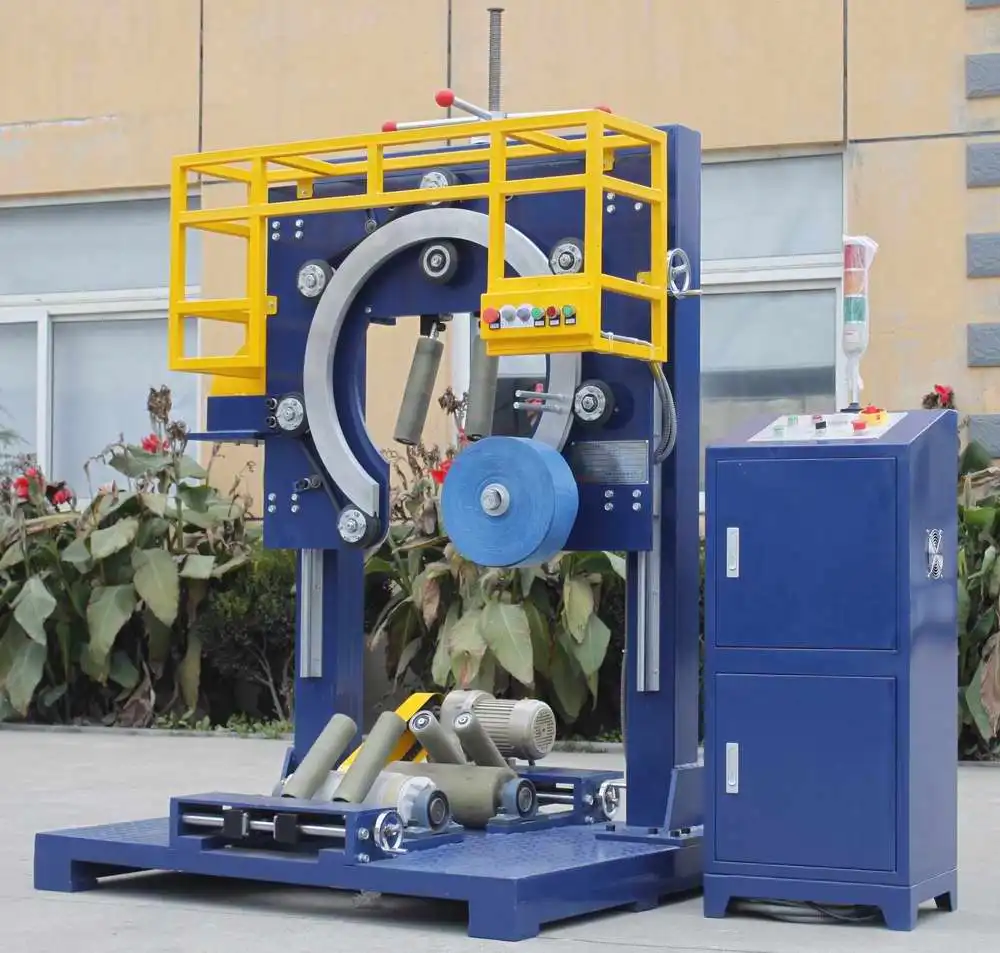

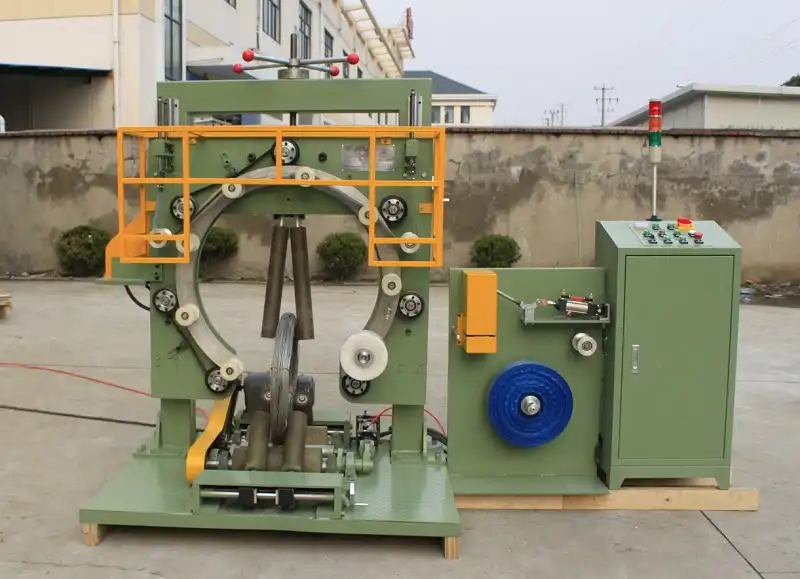

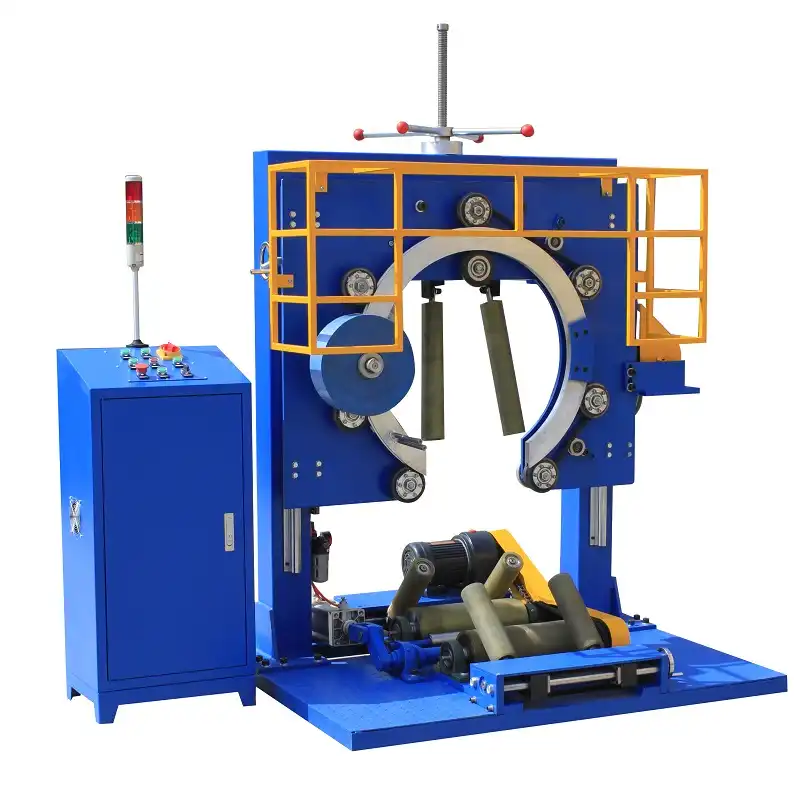

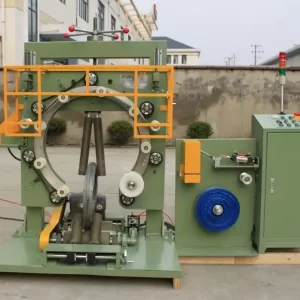

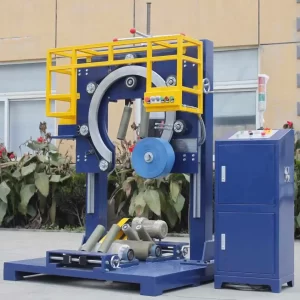

SH-FPW-300 Steel Wire Coil Ring Wrapper

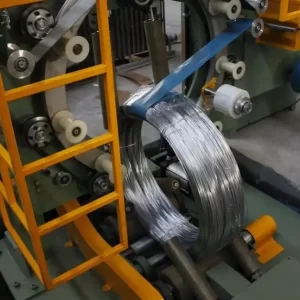

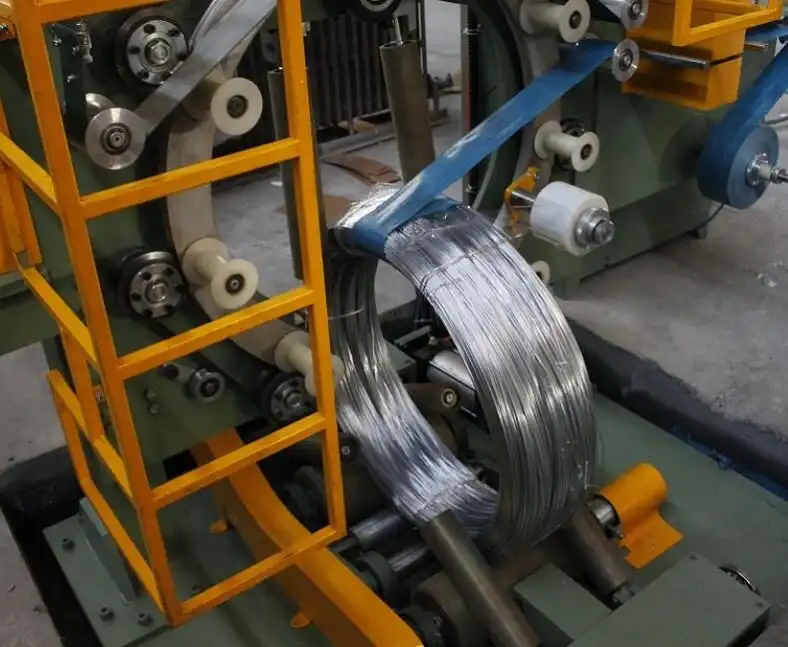

The SH-FPW-300 is a robust ring wrapper specifically engineered for efficiently packaging steel wire coils. This machine employs a ring-style film wrapping technique to provide comprehensive protection for wire coils, shielding them from dust, air, moisture, and other environmental factors. It is particularly suitable for wrapping light steel wire coils, razor wire coils, and GI wire coils.
Designed for flexibility, the SH-FPW-300 can accommodate a range of coil sizes and weights. The machine's operation is highly adaptable, allowing customization to fit specific customer requirements and packaging line layouts. Packaging parameters are easily input and managed via the control system for tailored, automatic operation.
Key Parameters
Below are the technical specifications for the SH-FPW-300 model:
| Items | SH-FPW-300 |
|---|---|
| Voltage (V/Hz) | 380V 50Hz 3Phase |
| Power (KW) | 1.5kw |
| Steel wire coil ID(mm) | 300-700 |
| Steel wire coil OD(mm) | 450-850 |
| Steel wire coil width(mm) | 100-300mm |
| Steel wire coil Weight(Kg) | 10-250kg |
| Packing material | PVC/LLDPE/PE/PAPER/HDPE |
| ID:50mm OD:100-250mm Width:100-120mm | |
| Overlapping rate | 10%-90% |
| Air supply. | No |
Operational Features
This machine is equipped with features designed for efficient and reliable performance:
- PLC with time relay for precise machine control.
- Supports both manual and automatic working modes for ease of operation.
- Manual infeeding and outfeeding of wire coils.
- Packing material tie-off mechanism at the start of wrapping.
- Adjustable overlap rate for the packing tape according to requirements.
- Manual cutting of the packing material upon wrap completion.
- Safety features include guardrails, soft starts, and stops.
- Ring height is adjustable to accommodate coils of different outer diameters.
- Packaging tension is adjustable via a special breaker.
- Requires only a power supply for operation; no complex installation needed.
- Automatic indicator alarms for troubleshooting, displaying the issue.
- Special brake on the tape release device to prevent material folding.
Packaging Process
The typical packaging sequence with the SH-FPW-300 is as follows:
- Load the wire coil onto the wrapping station.
- Affix the packing material to the beginning of the coil.
- Initiate the wrapping cycle.
- The coil is automatically wrapped with the selected material.
- Manually cut the packaging material after wrapping is finished.
- Remove the wrapped coil from the station.
Advanced Control and Flexibility
The SH-FPW-300 features an operation panel with intuitive push buttons, simplifying control. The intelligent control system and superior sensors allow operators to easily modify settings for different coil types and packaging requirements, minimizing errors even in complex procedures. The machine's programmable logic control facilitates quick changes between coil types and diameters, maximizing productivity through optimal packing patterns. Quick change tooling further reduces downtime between production runs. Real-time monitoring of key metrics ensures consistent high quality and maximum output, supported by automated fault diagnosis and prevention.
