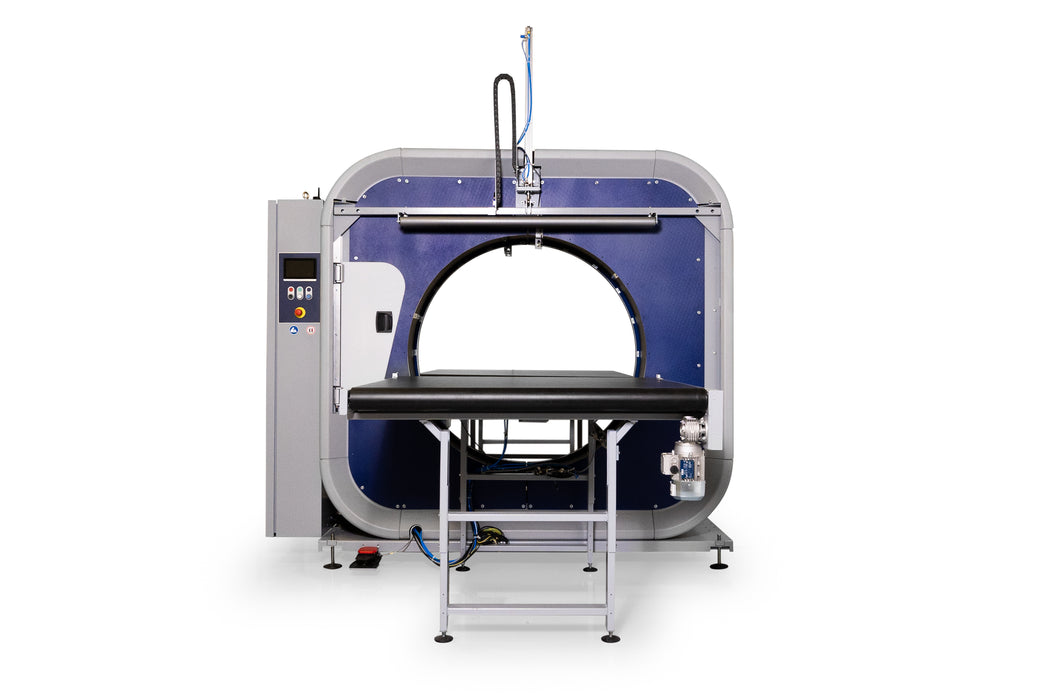

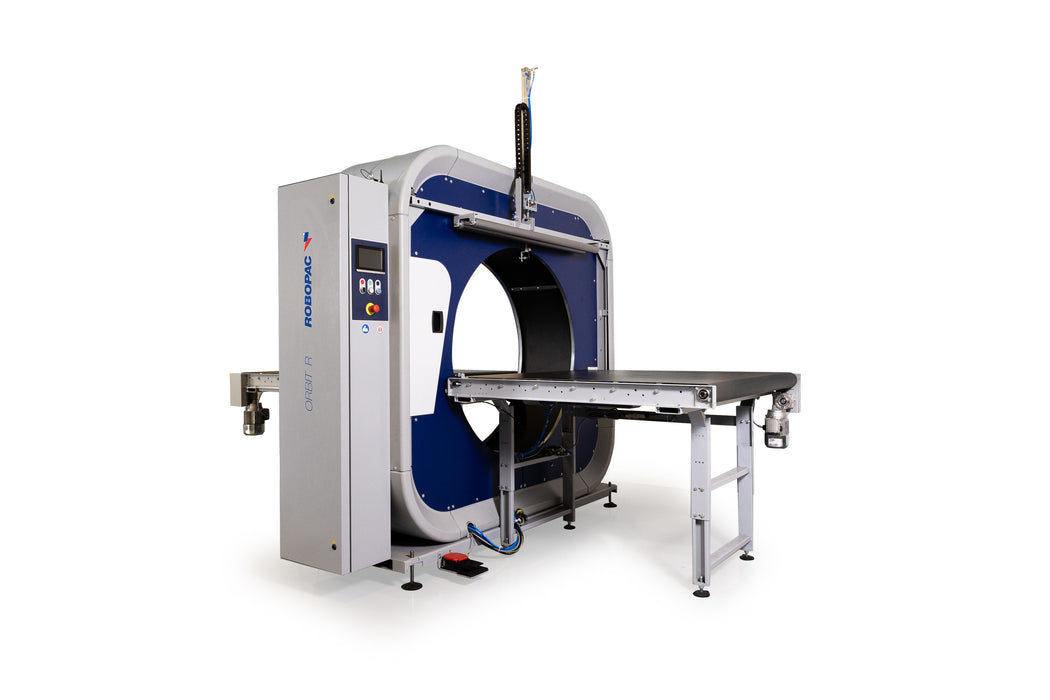

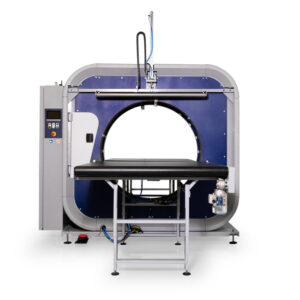

The SHJLPACK SH-R9 Semi-Automatic Horizontal Stretch Wrapper is a robust solution within the SHJLPACK Orbit R series, specifically engineered for efficiently packaging long, elongated products such as profiles, lumber, pipes, and furniture components. Utilizing a high-speed rotating ring system, it provides consistent and secure spiral wrapping, ensuring product protection during transit and storage.
Designed for seamless integration into packaging lines or standalone use, the SH-R9 offers several advantages through its advanced features and reliable operation.
Key Features and Advantages
-
Semi-Automatic Operation: Facilitates efficient packaging with operator assistance required primarily for product feeding and removal.
-
Automated Cut and Clamp: Features a highly reliable dual rod system for automatic film cutting and clamping at the end of each wrapping cycle, streamlining the process and reducing manual intervention.
-

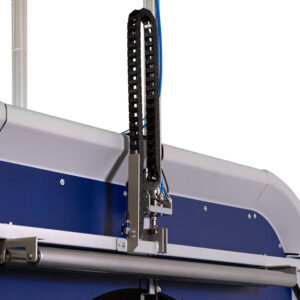

Product Handling: Equipped with automatic infeed and outfeed units that automatically adjust to ensure proper stabilization of the product during wrapping. Manual adjustment for varying product heights is also possible.
-

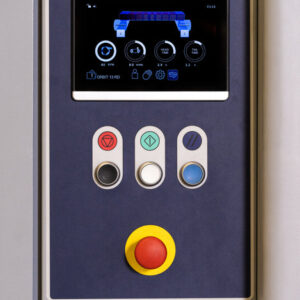

Advanced Control: A user-friendly 7-inch color touch screen provides intuitive control over all wrapping processes. The clear interface allows for quick and simple operation, and the system can store up to 20 unique, user-defined wrapping programs for different product types.
-
Safety Features: Includes electro-welded mesh safety guards surrounding the wrapping area to protect operators during machine operation.
R-Connect Connectivity
The SHJLPACK SH-R9 comes standard with R-Connect technology, bringing enhanced connectivity and data management capabilities to your packaging process. This innovative feature enables:
-
Remote Monitoring: Track machine usage and performance data via the cloud.
-
Alarm Management: Investigate alarms and potential issues remotely.
-
Parameter Adjustment: Adjust machine parameters remotely, significantly reducing response time to unexpected issues.
-
Downtime Reduction: Fast responses help minimize downtime and maintain operational efficiency.
-
Industry 4.0 Readiness: Provides real-time insights necessary for continuous improvement and meeting modern data-driven operational demands.
Technical Specifications
To provide a clear understanding of the SH-R9's capabilities, here are key specifications:
Parameter Value Unit Ring Diameter 900 mm Ring Speed 40 - 100 rpm Max Product Width/Dia. 1400 mm Max Product Height 1400 mm Max Product Length Unlimited - Standard Voltage 3/N/PE 400V 50/60Hz V/Hz Installed Power 4.5 kW Film Type Machine Film - Automation Level Semi-Automatic - Film Cut and Clamp Automatic Dual Rod - Control Interface 7" Color Touchscreen - Program Storage Up to 20 Programs Note: Specific configurations and options may affect final specifications.
The SHJLPACK SH-R9 is designed for demanding industrial environments requiring reliable and efficient wrapping of long products. Its combination of automated features, advanced control, and connectivity makes it a valuable asset for optimizing packaging operations.
