The SH-60P Horizontal Strapping Machine
The SH-60P is an automatic horizontal strapping machine developed by SHJLPACK, specifically engineered to provide exceptional stability for palletized loads through robust compaction and secure strapping.
Unmatched Compaction Power
What sets the SH-60P apart is its unique ability to apply significant compaction force. Utilizing a system of six cylinders, this machine can compact packages with a force up to 600 kg. This high level of compaction is crucial for stabilizing various goods, preparing them effectively for storage and transportation.
Engineered for Total Load Stability

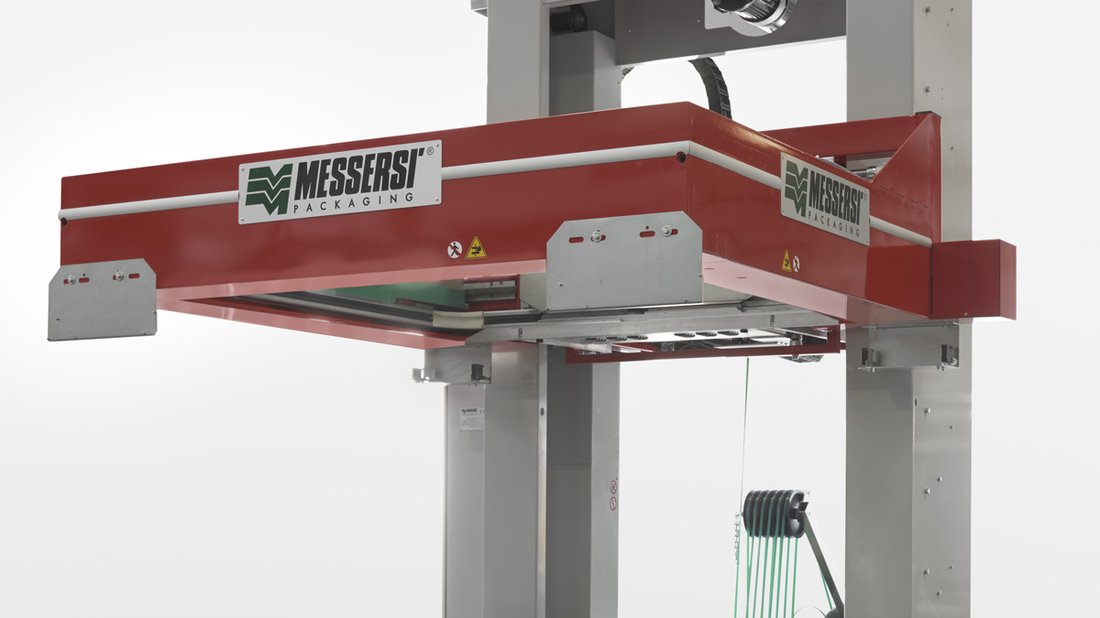

The operational system of the SH-60P incorporates an advancing movement of the strapping head and guides. This mechanism allows the machine to compact the palletized pack on all four sides before the strapping is applied. Pre-strapping compaction on multiple sides eliminates voids and tightens the load, guaranteeing superior stability and reducing the risk of shifting or damage during handling and transit.
Technical Specifications
| Feature | Specification |
|---|---|
| Strapping Band Type | Polypropylene (PP) and Polyester (PET) |
| Usable Band Size | Width from 8 to 19 mm, Thickness from 0.60 to 1.27 mm |
| Band Tensioning | Up to 700 kg |
| Band Junction | By welding or vibration |
| Feeding & Recovery Speed | 2.4 to 5.5 m/sec |
| Tensioning Speed | 0.25 m/sec |
| Strapping Cycle Time | From 1.2 to 3 seconds (depending on tensioning) |
| Power Supply | 220/400 V AC — 50/60 Hz |
| Installed Power | 3 kW |
| Standard Arch Size | 1510 x 1510 mm (Tailor-made arches available) |
| Coil Holder | 390/405 mm internal diameter, 150/160 mm width |
Versatility Across Industries
Designed for 'palletized products of all kinds and sizes', the SH-60P is suitable for a wide range of sectors requiring secure horizontal strapping. Its robust construction and high compaction make it a reliable solution for demanding applications.
Optional Enhancements
To further customize the strapping process and protect specific load types, the SH-60P offers optional features, including:
- Vertical edge protector device
The SH-60P by SHJLPACK represents a powerful solution for businesses needing to ensure maximum load stability and security through high-force, multi-sided compaction and reliable horizontal strapping.
