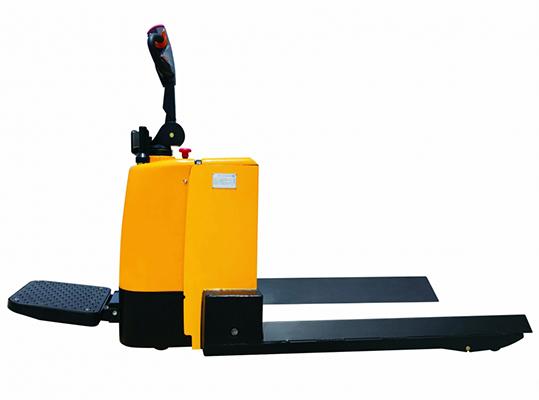

Efficient Handling of Rolled Materials

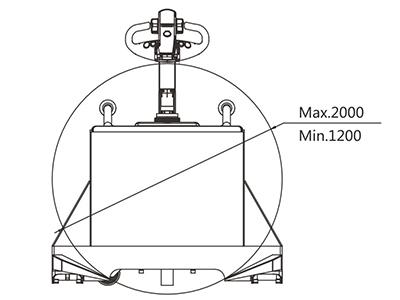

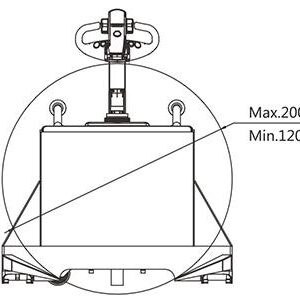

Transporting large, heavy rolls of material can be challenging and risky. The Reel Handling Pallet Truck provides a dedicated solution for industries that work with paper, film, foil, textiles, and nonwovens. Its core innovation lies in the V-Pan design, which is tailored to securely hold cylindrical loads. This prevents the rolls from shifting or rolling during transit, ensuring stable and safe movement within your facility. Capable of handling rolls up to 2000mm in diameter and weighing up to 2000kg, this truck is a robust tool for demanding material handling tasks.

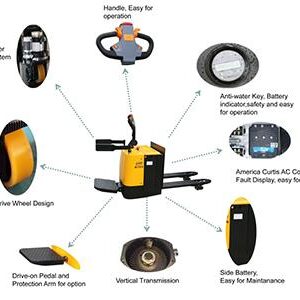

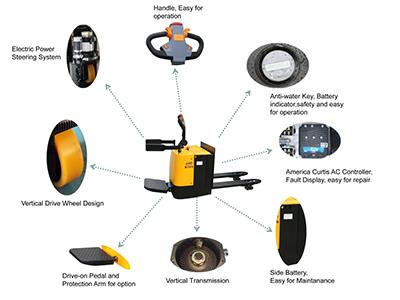

Key Features for Optimized Operation
Designed with the operator and efficiency in mind, this pallet truck incorporates several features to streamline reel handling:
- Easy Maneuverability: Electronic Power Steering makes navigating tight spaces and controlling heavy loads effortless, reducing operator fatigue.
- Intuitive Control: A humanized, multi-functional handle design provides comfortable and easy access to all operating controls.
- Stable and Smooth Hydraulics: The high-quality hydraulic system operates with low noise and vibration, ensuring smooth, controlled lifting and lowering speeds for precise load placement. Its high sealing integrity guarantees reliable performance.
- Precise Height Control: An electronic limit switch accurately controls the maximum lifting height, preventing potential damage to the motor and equipment.
- Multi-directional Control: The hydraulic system features a multiway valve allowing forward, backward, left, and right movement. Adjustable tilt speed provides fine control for accurate loading and unloading of rolls.
- Enhanced Safety: Equipped with crucial safety functions including emergency reverse drive and an immediate emergency power cut-off.
These features work together to provide a handling solution that is not only efficient but also safer and easier for the operator.
Detailed Technical Specifications
Understanding the capabilities of your equipment is vital. Below is a table detailing the key technical parameters of the Reel Handling Pallet Truck:
| Parameter | Unit | Value |
|---|---|---|
| Load Capacity (Q) | kg | 2000 |
| Load Center Distance (c) | mm | 700 |
| Wheelbase (Y) | mm | 1450 |
| Service Weight (with battery) | kg | 930 |
| Tyres | Polyurethane | |
| Steer Wheel Size | Φ248 × 75 | |
| Load Wheel Size | Φ80 × 80 | |
| Caster Size | Φ115 × 50 | |
| Wheels Quantity (x=drive wheels) | 1X + 2/4 | |
| Tread, Front (b10) | mm | 1040 |
| Tread, Rear (b11) | mm | 391 / 526 |
| Max. Lift Height (h3) | mm | 100 |
| Fork Height, Lowered (h13) | mm | 170 |
| Overall Length (l1) | mm | 2300 |
| Overall Width (b1) | mm | 1200 |
| Fork Dimensions (S/e/l) | mm | -- |
| Width Over Forks (b5) | mm | 1200 |
| Ground Clearance, Center of Wheelbase (m2) | mm | 20 |
| Aisle Width for Pallets 1000*1200 Crossways | Ast(mm) | 2830 |
| Aisle Width for Pallets 800*1200 Lengthways | Ast(mm) | 2710 |
| Turning Radius (Wa) | mm | 2020 |
| Travel Speed, Laden/Unladen | Km/h | 6 / 6 |
| Lift Speed, Laden/Unladen | m/s | 0.06 / 0.08 |
| Lowering Speed, Laden/Unladen | m/s | 0.05 / 0.045 |
| Max. Gradeability, Laden/Unladen | % | 5 / 8 |
| Service Brake | Electromagnetism: regenerative brake | |
| Drive Motor Power | kW | 1.5 |
| Lift Motor Power | kW | 2 |
| Battery Voltage/Nominal Capacity | V/Ah | 24 / 240 |
| Battery Weight | Kg | 260 |
| Steering Type | Electronic | |
| Sound Level at the Driver's Ear (DIN12053) | dB(A) | 70 |
This detailed breakdown provides essential information for integrating the Reel Handling Pallet Truck into your existing material handling workflow and infrastructure.
Ideal for Roll-Based Industries
The specialized design makes this pallet truck indispensable for businesses involved in printing, packaging, textile manufacturing, and any other industry requiring the safe and efficient movement of large, heavy rolls. Its features ensure that valuable materials are transported securely, minimizing the risk of damage and maximizing operational efficiency. The combination of robust capacity, user-friendly controls, and safety features makes it a valuable asset for optimizing your roll handling processes.
