PC wire coil packing machine | Pre-strand wire wrapping machine

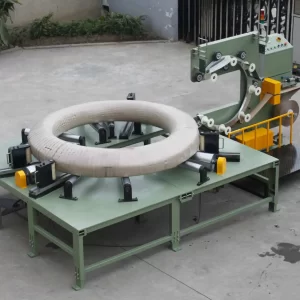

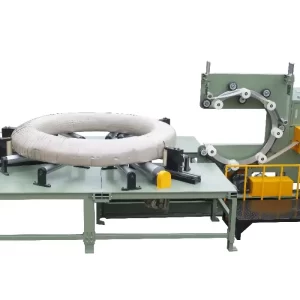

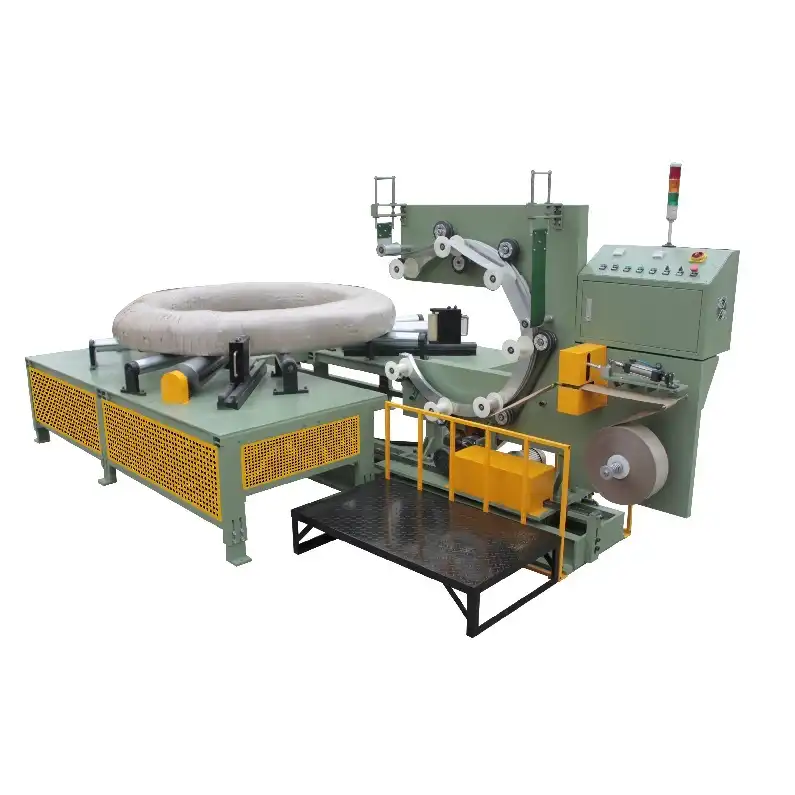

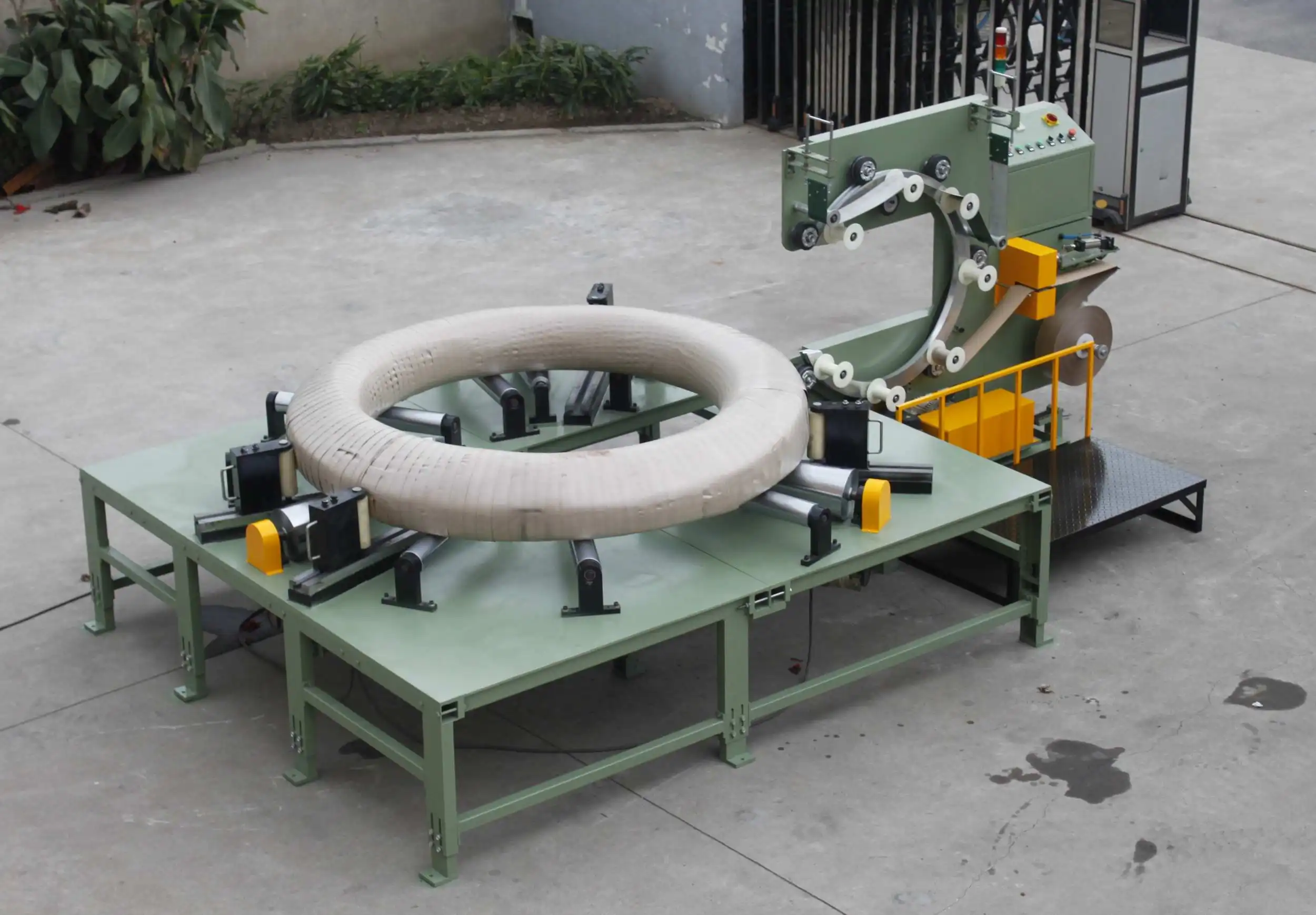

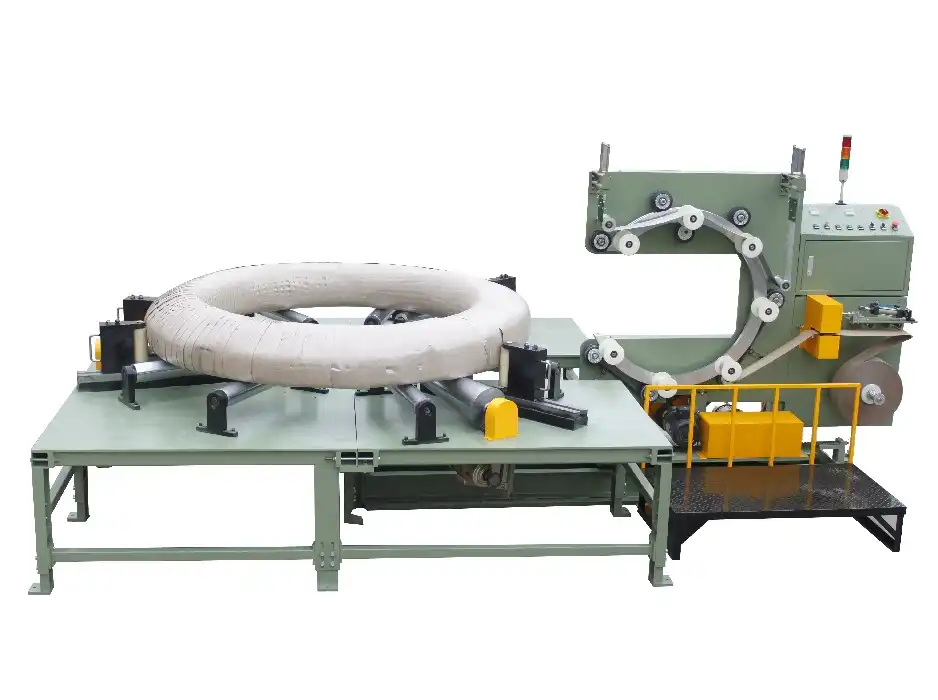

SHJLPACK SH-PW2500 PC Wire Coil Packing Machine

The SHJLPACK SH-PW2500 is a high-performance horizontal wrapping machine engineered for the efficient and secure packaging of pre-strand steel wire coils. This advanced ring-type wrapper significantly improves packaging speed and provides a protective wrap, shielding the wire surface from scratches and damage.

How It Works

The SH-PW2500 utilizes a ring-style mechanism that feeds plastic wrapping film through the inner diameter of the coil. The machine features an indexing rotating ring and wrapping arms that apply stable, adjustable tension to the film, ensuring a tight and consistent package. The wrapping station is movable along a track, facilitating easy coil loading and unloading.

Operating modes include both manual and automatic options, allowing flexibility in the packaging process. The entire wrapping process can be computer-controlled for precision and efficiency. With a high wrapping speed of up to 18 seconds per cycle, the SH-PW2500 is designed to increase throughput for wire manufacturers.

Key Features

This machine incorporates several features designed for reliable operation, safety, and package quality:

• Operation & Control:

  • Movable wrapping station with track for convenient coil handling.
  • Choice between manual and automatic working modes.
  • Converter for adjusting packing tape overlap based on roller and ring speed.
  • Adjustable packaging tension.
  • Ring jog, soft start & stop for smooth operation.
  • Ring reset function via sensor.
  • Material fixation on the ring for stable wrapping.
  • Special tension device for high-strength packaging.
  • Choice of different packing materials.

• Safety & Protection:

  • Guardrails for enhanced safety.
  • Soft starts and stops.
  • Overloading protection.
  • Both electric and mechanical limitations for the operation system.
  • Indicator alarms automatically signal trouble, showing the issue for quick diagnosis.
  • Special brake on the tape release device to prevent material folding.
  • Supportive rolls driven by motors to protect the wrapping.
  • Rollers are wrapped by durable polyurethane.
  • Convenient for hoisting, ensuring safe and reliable handling.

Technical Specifications

The SH-PW2500 model is built to handle medium to large-sized steel wire coils. Detailed technical parameters are provided in the table below:

Benefits for Wire Packaging

Implementing the SH-PW2500 automated horizontal wire wrapping machine increases the efficiency and consistency of packaging wide and heavy PC and pre-stranded wire coils. It reduces the manual labor required and minimizes the risk of injury associated with hand-wrapping sharp and bulky coils. The ring wrapping style, combined with crane-assisted loading capabilities, helps achieve a secure, high-quality wrap finish. For high-volume wire suppliers and processors, this machine significantly improves productivity and overall package quality.
