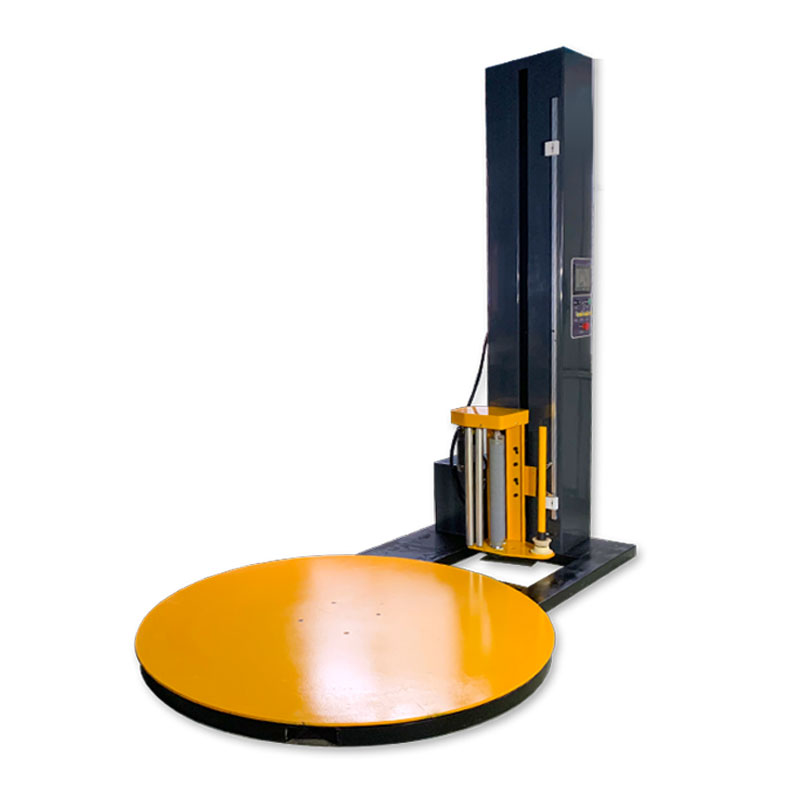

SH-1650F-L Pallet Pre-stretch Wrapping Machine
The SH-1650F-L Pallet Pre-stretch Wrapping Machine is specifically designed for securing bulk goods on pallets, making it an essential tool for both container shipping and general warehousing. This versatile machine finds widespread application across a diverse range of industries, including but not limited to:
- Glass Products
- Hardware Tools
- Electronic Appliances
- Paper Products
- Ceramics
- Chemicals
- Food and Beverages
- Building Materials

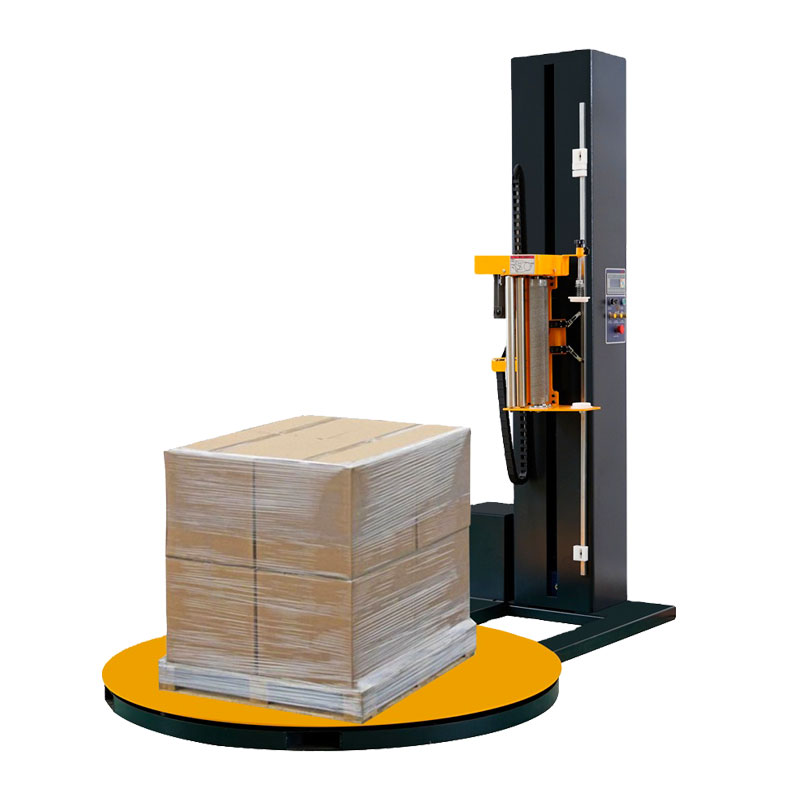

By effectively wrapping and stabilizing palletized loads, the SH-1650F-L dramatically improves logistics efficiency and significantly reduces potential losses that can occur during transportation. The comprehensive wrap provides reliable protection against dust and moisture, safeguarding the integrity of your products. Furthermore, the integrated pre-stretch technology helps in substantially lowering overall packaging material costs, representing a smart investment for enhancing your product packaging quality and efficiency.
Key Features and Benefits
The SH-1650F-L model incorporates several design highlights to ensure reliable performance and cost-effectiveness:
- Pre-stretch Film Carriage: Utilizes a powered pre-stretch system capable of stretching film up to 300%, maximizing film usage and providing significant cost savings.
- Adjustable Wrapping Parameters: Offers variable frequency drive (VFD) control for turntable speed (0-12 RPM), film carriage ascent/descent speed, and film tension. This allows operators to fine-tune the wrapping process for optimal stability based on different load characteristics.
- Generous Packaging Height: Designed to handle loads up to 2000mm in height, accommodating a wide variety of palletized goods.
- Standard Model with Customization: While a standard, reliable machine, key parameters such as turntable load capacity (standard 2000KG) can be customized to meet specific operational needs.
- Durability and Reliability: Built for consistent performance in industrial environments.
Technical Specifications
| Description | Parameter |
|---|---|
| Turntable Diameter | 1650mm |
| Turntable Speed | 0-12 RPM (Variable Frequency Adjustable) |
| Packaging Speed | 30-40 Pallets/Hour |
| Max Pallet Dimensions | 1.1 x 1.2 m (Length x Width) |
| Maximum Load Height | 500-2000mm |
| Turntable Load Cap. | 2000KG (Customizable) |
| Power/Voltage | 110/220/380V 50HZ |
| Power Consumption | 1.55KW |
| Machine Dimensions | L2545 x W1650 x H2785mm |
| Machine Weight | 550Kg |
| Film Stretch Ratio | Up to 300% |
| Stretch Film Width | 500mm |
The SH-1650F-L provides a practical and effective solution for businesses requiring secure, protective, and cost-efficient pallet wrapping.
