Manual pallet stackers are essential tools for lifting and moving palleted goods in warehouses, workshops, and other industrial settings. They provide a versatile and cost-effective solution for stacking and transporting loads over short distances, particularly in areas where electric power is not required or easily accessible.

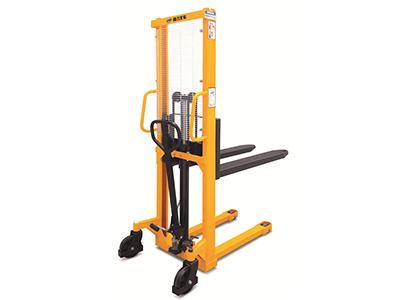

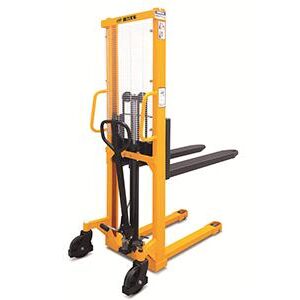

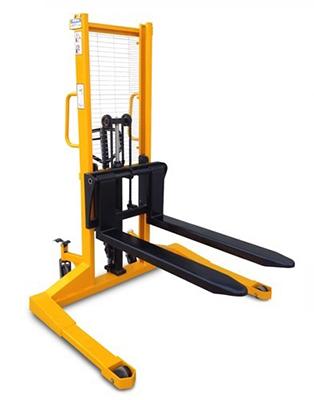

We offer various configurations, including manual straddle stackers and fork-over manual stackers. The choice between these designs depends on the type of pallets you use; straddle legs are often suitable for various pallet sizes, while fork-over models work well with open-bottom pallets. These stackers are built for reliability and straightforward operation, capable of handling loads up to 2000 kg and reaching lifting heights of up to 3000 mm.
Key Features:
- Optional Dual Rate Pump: For increased working efficiency and optimized performance, a dual rate pump option is available, allowing for faster lifting speeds under lighter loads.
- Adjustable Descending Speed: Provides precise control over the lowering of loads, enhancing safety and preventing damage to goods.
- Optimized Oil System: Features an excellent oil injection hole design that ensures accurate oil adding, prevents leakage, and makes maintenance more convenient.

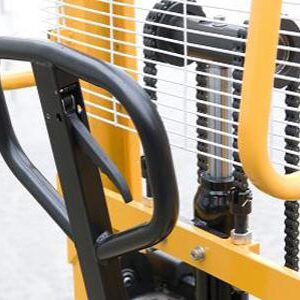

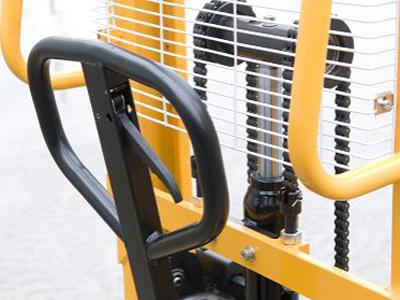

- Smooth & Consistent Lifting: The lifting speed remains constant and smooth, regardless of the load weight, ensuring stable operation without impact. The stacker can be conveniently lifted using either the hand handle or the foot pedal.
These features combine to create a durable, easy-to-maintain, and efficient tool for your material handling needs.
Technical Specifications:
To help you select the right model for your application, refer to the detailed specifications below:
| Parameter | Unit | SDA1016 | SDA1516 | SDA2016 | SDA1025 | SDA1030 | SDA1525 | SDA1530 |
|---|---|---|---|---|---|---|---|---|
| Capacity (Q) | kg | 1000 | 1500 | 2000 | 1000 | 1000 | 1500 | 1500 |
| Load Center (C) | mm | 500 | 400 | 400 | 500 | 500 | 400 | 400 |
| Service Weight | kg | 250 | 270 | 290 | 290 | 316 | 310 | 336 |
| Lowered Mast Height (h1) | mm | 2086 | 2086 | 2086 | 1836 | 2086 | 1836 | 2086 |
| Lifting Height (h3) | mm | 1600 | 1600 | 1600 | 2500 | 3000 | 2500 | 3000 |
| Overall Height (h4) | mm | 2086 | 2086 | 2086 | 3000 | 3500 | 3000 | 3500 |
| Fork Lowered Height (h13) | mm | 90 | ||||||
| Overall Length (l1) | mm | 1360 | ||||||
| Overall Width (b1) | mm | 765/980 | ||||||
| Fork Size (s/e/l) | mm | Fixed forks 60×142×1070 and 60×142×1150mm | ||||||
| Fork Width (b5) | mm | 550/680/840/930 | ||||||
| Ground Clearance (m1) | mm | 25 | ||||||
| Turning Radius (Wa) | mm | 1200 | ||||||
| Lifting Speed (laden/unladen) | mm/stroke | 9.5/10.5 | ||||||
| Lowering Speed | mm/s | Hand control |
Note: Dimensions and performance may vary slightly by specific model and configuration.
Manual stackers are a reliable and durable solution for stacking and retrieval tasks in various industrial and warehouse environments, offering simplicity and control.
