Lift tables are fundamental tools in material handling, providing ergonomic and efficient solutions for raising and positioning goods. They come in different designs to suit various applications, from stationary lifting needs to mobile transfer tasks within a facility. The core mechanism often utilizes a scissor-like structure, which expands vertically to lift the platform.

One key distinction among lift tables is their mobility. Fixed lift tables are installed in a specific location and provide stable, consistent lifting for tasks like assembly, packaging, or workstation height adjustment. In contrast, movable lift table carts are equipped with wheels, allowing materials to be easily transported after being lifted. This mobility adds versatility, enabling the same unit to serve as both a lifting device and a transport cart.

The lifting capacity and height are influenced by the scissor mechanism's design. Several configurations are available to meet different load requirements and lifting ranges:

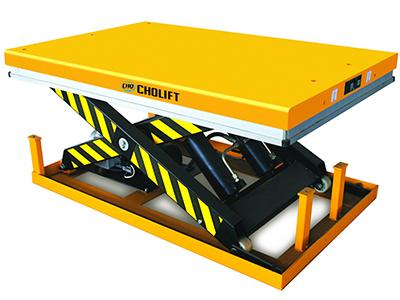

• Single Scissor Lift Table: This is a common type, featuring a single set of scissor arms. It is frequently used for material handling tasks directly on production floors, offering straightforward vertical lifting within a moderate range.

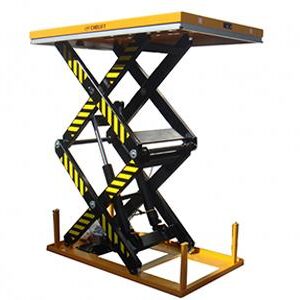

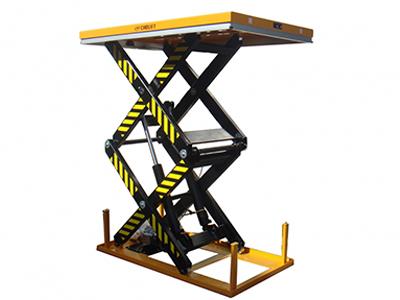

• Dual Scissor Lift Table: Designed for heavier duty and larger volume applications, the dual scissor lift table incorporates two sets of stacked scissor arms. This configuration allows for higher lifting heights while maintaining stability.

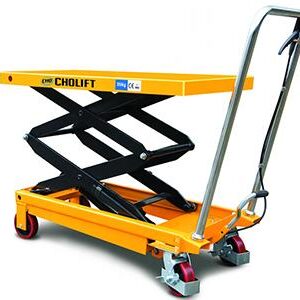

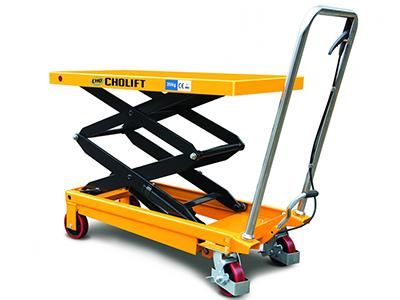

• Dual Scissor Lift Table Cart: Combining the higher lift capability of a dual scissor design with mobility, this cart is ideal for tasks that require both significant vertical positioning and transportation of materials within a factory environment.

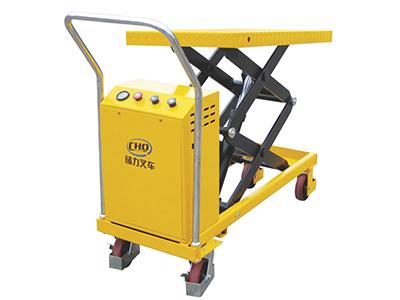

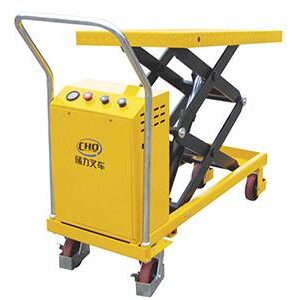

• Electric Lift Table: Powered by an electric motor, this type automates the lifting process, providing ease of operation. A representative model offers basic parameters suitable for various uses, such as:

  • Load capacity: 350kg
  • Lifting height: 1300mm

• Horizontal Double Scissor Lift Table: This type features a tandem configuration of two scissor arms arranged horizontally. This design is specifically engineered to achieve a higher load capacity compared to standard single or dual scissor tables at the same lifting height, making it suitable for long or heavy loads.

• Hydraulic Lift Table Cart: Utilizing hydraulic power for lifting, this type also functions as a transport cart. Hydraulic systems offer reliable and often powerful lifting. These carts are used to lift and move goods throughout a factory, and platform sizes can often be selected to match specific material dimensions.

Platform size is another adaptable feature, often adjustable according to specific customer needs to accommodate different loads and workspace constraints. The choice between fixed and movable, single or multi-scissor, and electric or hydraulic power depends on the specific application, required load capacity, lifting height, and mobility needs.

These different types of lift tables provide flexible solutions for improving ergonomics, efficiency, and safety in various industrial and manufacturing settings by reducing the need for manual lifting and positioning.
