Horizontal Wire Coil Packaging Line WS-150

Understanding the WS-150 Horizontal Wire Coil Packaging Line

The WS-150 Horizontal Wire Coil Packaging Line is engineered to address the critical need for effective and efficient packaging of wire coils in a horizontal orientation. In manufacturing environments, properly protected coils are essential for preventing damage, corrosion, and unraveling during handling, storage, and transit. The WS-150 automates this vital step, enhancing productivity and package integrity.

Key Features and Capabilities

Designed for robust performance and ease of use, the WS-150 incorporates several features common to advanced horizontal coil packaging systems:

• Automatic Operation: Reduces manual labor and ensures consistent packaging quality through automated coil feeding, wrapping, and discharge.
• Horizontal Wrapping: Applies stretch film, paper, or other packaging materials horizontally around the outside diameter of the coil.
• Adjustable Overlap and Tension: Allows for precise control over the film overlap and tension, optimizing material usage and packaging strength for different coil types and protection requirements.
• Integrated Conveyor System: Often includes entry and exit conveyors to facilitate smooth material flow into and out of the wrapping zone, integrating seamlessly with production lines.
• Control System: Utilizes modern control systems, typically PLC-based, for reliable operation, diagnostics, and easy adjustment of wrapping parameters.
• Safety Mechanisms: Incorporates safety features such as guards, emergency stops, and sensors to ensure operator safety during machine operation.

While specific parameters like maximum coil weight, diameter range, and wrapping speed vary by configuration, the WS-150 model is built to handle a significant range of wire coil sizes typical in fabrication and processing industries, offering a balance of capacity and footprint.

Operational Benefits

Implementing the WS-150 Horizontal Wire Coil Packaging Line offers substantial benefits for wire manufacturers and fabricators:

• Enhanced Packaging Quality: Provides a tight, consistent wrap that protects coils from dust, moisture, and physical damage better than manual methods.
• Increased Throughput: Automating the wrapping process significantly increases the speed and volume of coils that can be packaged per shift.
• Reduced Labor Costs: Minimizes the need for manual wrapping, freeing up personnel for other tasks.
• Improved Material Handling: Integration with conveyor systems streamlines the flow of coils, reducing bottlenecks and potential for injury.
• Cost Efficiency: Optimizes packaging material usage through controlled tension and overlap settings.

How it Works

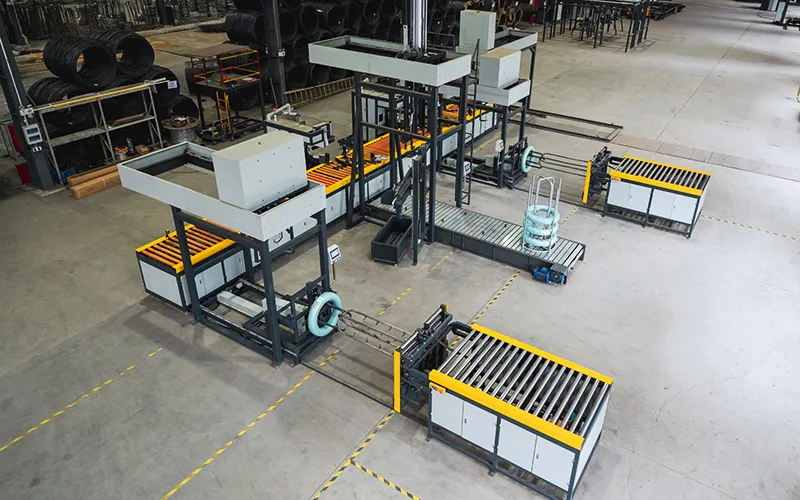

A typical operation sequence for the WS-150 involves a wire coil being fed into the machine on a conveyor. The machine's wrapping head, which holds the packaging material roll, begins to rotate around the coil's circumference. As the coil is transported horizontally through the machine, the material is continuously applied, creating a secure, protective layer around the coil's outer surface. Once the wrapping is complete, the coil exits the machine, ready for the next stage of handling or storage.

The WS-150 is a reliable solution for automating the critical task of wire coil packaging, contributing to improved product quality, operational efficiency, and workplace safety in fabrication environments.
