Automatic Horizontal Wire Coil Packaging Line
This packaging line is specifically designed for the high-volume and stable packaging of wire rod coils and slit coils. Engineered to withstand robust industrial environments, the system wraps coils while they are positioned horizontally. This horizontal orientation ensures enhanced stability due to a lower center of gravity and broader base compared to vertical systems, making the machine less prone to tipping, more resistant to vibration, and generally easier to operate and maintain.
Key Features
The Automatic Horizontal Wire Coil Packaging Line incorporates several features aimed at efficiency, reliability, and flexibility:
- Material Efficiency: Reduces packaging material usage by approximately 30%.
- Automated Alerts: Equipped with an automatic alarm system for efficient fault detection.
- Reduced Labor: Operable by a single person, significantly cutting labor requirements.
- Horizontal Stability: Design ensures high structural stability.
- Automation Ready: Compatible with AGV automatic feeding for fully intelligent operation.
- Remote Capability: Supports remote monitoring and control.
- Packaging Flexibility: Allows flexible selection of packaging materials (woven tape, PE film, kraft paper) and adjustable wrapping configurations.
- Reliable Components: Fitted with Siemens electrical components for dependability.
- Customizable: Dimensions are fully customizable based on your specific coil sizes and packaging requirements.
Versatile Loading Options
Loading flexibility is a key aspect of this system. In addition to the standard manual loading setup, the line supports various automatic and semi-automatic methods to integrate seamlessly with your facility and workflow. Options include:
- Manual Loading

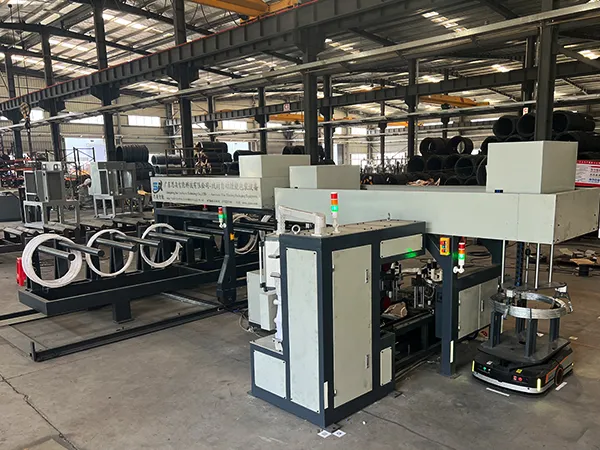

- AGV Automatic Feeding
- Forklift Loading
- Overhead Crane Feeding
These options allow for greater automation and adaptability, improving material flow and operational efficiency.
Applications
The horizontal wire coil packaging line is highly versatile and suitable for through-the-eye wrapping of various wire rod and slit coils, including:
- Stainless steel wire
- Low-carbon steel
- High-carbon steel
- Galvanized wire
- Copper strip
- Copper wire
- Aluminum strip
- Iron wire
Performance Specifications
Packaging speed options range from 45 seconds to 1.5 minutes per coil. The exact speed depends on the coil size, weight, and chosen packaging material. The system is designed for rapid and consistent throughput to meet demanding production schedules.
Available Models and Specifications
Here is a comparison of various models within the horizontal wire coil packaging line, outlining their key technical specifications:
| Model | Packaging Speed | Inner Diameter | Outer Diameter | Weight |
|---|---|---|---|---|
| SA-WS-10 | 1 min/coil | 550mm (±20mm) | 650mm (±20mm) | 2.5-20kg |
| SA-WS-25 | 45 sec/coil | 280mm (±20mm) | 440mm (±20mm) | Max. 50kg |
| SA-WS-35 | 50 sec/coil | 280-330mm | 450-500mm | 50kg |
| SA-WS-150 | 1 min/coil | 400mm (±20mm) | 700mm (±30mm) | Max. 200kg |
| SA-WS-200 | 1.5 min/coil | 480mm (±20mm) | 700mm (±20mm) | 200kg |
| SA-WS-400 | 1.5 min/coil | 460mm (±20mm) | 700mm (±20mm) | 15-200kg |
Tailored equipment recommendations and customization are available to ensure the solution precisely matches your coil specifications, production capacity, and plant layout for maximum efficiency.
