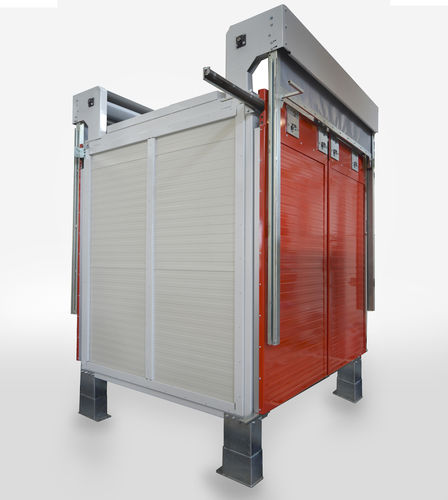

Gas shrink oven – SH-MC – SHJLPACK – electric / hot air

The SHJLPACK SH-MC heat shrinking oven is engineered for robust performance and energy efficiency in industrial packaging applications. It is available in two primary configurations, offering flexibility based on energy source availability and operational needs.

**Key Characteristics:**

* **Type:** Electric, Gas
* **Specifications:** Hot air circulation
* **Power (Electric Version):** 390 kW (530 hp)
* **Capacity:** 60-70 packs/hour

**Design and Features:**

The SH-MC oven's design focuses on achieving high insulation levels and significant energy savings. This is accomplished through carefully studied construction and features designed to reduce heat loss during operation.

* **High Insulation:** The chamber boasts high insulation properties, contributing directly to reduced energy consumption.
* **Energy Efficiency:** Heat losses are minimized through effective insulation and design, leading to operational cost savings.
* **Advanced Door System:** Features a "shutter" door mechanism with independent motors controlling inlet and outlet access. This system automatically adjusts its position based on pack sizes, further reducing heat escape and improving efficiency.
* **Airtight Chamber:** The chamber is designed to be airtight, preventing the circulation of any fumes produced by the heating system, ensuring a safer operating environment.
* **Uniform Hot Air Recirculation:** An internal device is dedicated to recirculating hot air evenly throughout the chamber. This ensures that the shrink film receives the same temperature on all sides of the product, resulting in homogenous shrinkage and a consistent, functional pack appearance.
* **Dual-Part Construction:** The oven is composed of two main sections:
1. **Heat Shrinking Chamber:** This part automatically manages the passage and processing of packages.
2. **Heating Source:** Available as a lateral combustion chamber in the Gas edition or a dedicated heating chamber in the Electric edition. Both versions ensure high and constant internal hot air circulation.
* **Optimized Thickness and Door Insulation:** The oven's specific thickness and the insulation of its doors are specially designed, studied, and tested to maintain low energy consumption while ensuring effective shrinking.

This combination of design features ensures reliable performance, energy efficiency, and high-quality shrink wrapping for a variety of industrial goods.
