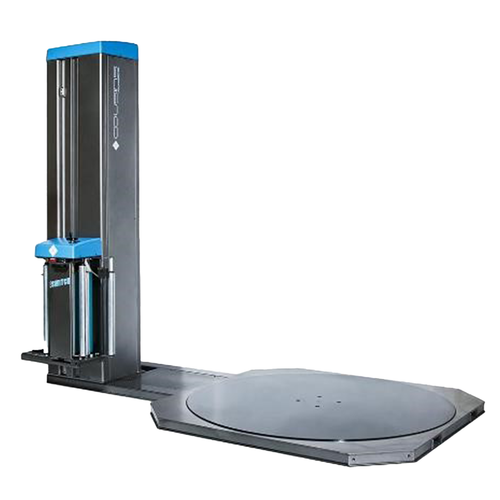

The Cousins SWITCH Low Profile Pallet Wrapper is engineered for reliable and efficient stretch wrapping operations. Designed as a semi-automatic turntable system, it focuses on providing robust performance and flexible control for securing palletized loads.
Key Specifications
This machine handles a range of load sizes and weights, optimized for turntable wrapping.
| Specification | Detail |
|---|---|
| Operation Type | Semi-Automatic |
| Stretch Wrapper Type | Turntable |
| Maximum Loads Per Hour | 35 (Single Turntable) |
| Maximum Wrap Height | 87" H |
| Maximum Load Weight | 4,500 lbs dynamic, 10,000 lbs static |
| Max Load Size (Clear Tower) | 67″ W x 67″ L (96″ load diagonal) |
| Max Load Size (Inboard) | 46″ W x 46″ L (65″ load diagonal) |
Turntable:
- 65″ Diameter, laser-cut steel plate with surround deck protection
- 2.75″ height from floor
- Maintenance-free 48 roller bearing support system
- ANSI # 50 direct chain drive with tensioner
- 3-12 RPM rotational speed with soft start acceleration
- 1/2 HP AC variable speed motor
- Final revolution deceleration and positive stop alignment
- Accu-Count exact turntable positioning system
- Rugged surround deck for protection, 3-sided loading, and pit mounting
- Front and back forklift ports for easy movement
Film Carriage Elevator:
- 1/2 HP AC variable speed motor
- ANSI #40 direct chain drive with shock dampener
- Anti-Fall Safety Device
- Maintenance-free carriage guidance system
Film Delivery System:
- Super Rapid Thread II ™ 20″ capacity pre-stretch carriage
- Special Film Threading Device for sticky side orientation
- 1/2 HP AC variable speed motor
- Fully electronic dynamic dancer corner compensation
- Fixed stretch capability from 33% to 313% (adjustable via sprocket change)
- Carriage Descent Obstruction Safety Shut-Off Device
- Rapid Thread ™ Safety Door with auto power cut-off switch
- Side mounted carriage for operator convenience and safety
- Lifetime warranty on pre-stretch rollers
Electrical Input:
- 115 Volts, 1 Phase, 60 Hz, 15 Amps
Operational Features
The SWITCH Low Profile offers user-friendly controls and structural advantages:
Control Panel:
- Electronic controls with LCD operator interface (HMI)
- Power Off – On – Reset switch and Power On indicator light
- Single-button Auto Wrap Cycle Start/Pause
- Cycle Pause for top sheets
- Reinforce Wrap control for mid-wrapping
- Base or Top Wraps First program selector
- Up Only or Up/Down wrap program selector
- Emergency Stop button
- Turntable Jog button
- Film Carriage Lower and Raise buttons
- Film tension (Force-to-Load) control
- Separate film carriage raise and lower speed controls
- Operator programmable turntable speed control
- Triple beam auto load height sensing photo-eye (detects dark or shiny loads)
- Separate 1 to 12 revolution top and bottom wrap control
- Selectable Reduced Film Tension parameters for wrapping top and/or bottom
- A – B – C wrap program selector with storage for unique parameters per program
Structural Design:
- All structural steel construction
- Forklift truck portable base structure design with front and rear lifting tubes
- Structural steel tube machine tower with sheet metal covers
- Electro-static powder coated paint finish
Available Options
Customize the SWITCH Low Profile Pallet Wrapper with various options:
Performance & Capacity:
- Tower Extension (for 110” wrap height)
- 1 ft. Base Extension (for maximum 119” diagonal loads)
Environmental Adaptation:
- Dusty Package (Sealing of control panel and conduit entries)
- Cold Weather Package (down to 33°F)
- Freezer Package (32° F to -20° F)
Film Handling & Load Securing:
- 30” film carriage (accommodates 20” and 30” film)
- AIR FLOW film splitter – 20” (manual, splits to two 10” webs with roping)
- AIR FLOW film splitter – 30” (manual, splits to three 10” webs with roping, requires 30” carriage)
- Pallet Lock Roping Device (secures load to pallet, uses roped or full web film)
- Pallet Lock Roping Device (Deduction for NO AIR COMPRESSOR)
Weighing & Loading Aids:
- Built-in Load Cells Scale Package (with GSE250 Indicator – Not legal for trade)
- Built-In Load Cells Scale Package Ramp (72” L x 48” W)
- Upgrade digital weight indicator from GSE250 to Matrix 365 (adds communication/printer features)
- Scale porch extensions (24” L x 48” W, 40” L x 48” W)
- Ramp for manual pallet jack loading (48” W x 60” L)
- Porch Extensions for powered pallet jacks (24” L x 48” W, 40” L x 48” W)
Other Options:
- Starter Spare Parts Kit
- Beacon Light with Red & Green Lens (indicates run, clear, or fault)
- Dual Turntables (increases production capacity)
