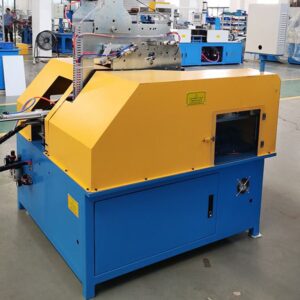

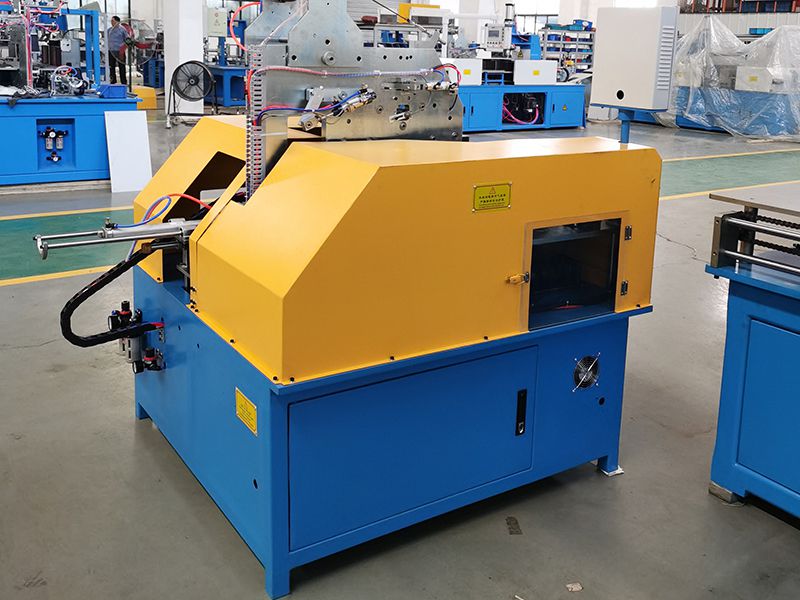

The Circinate Film Cable Coil Packaging Machine provides an efficient and automated solution for packaging reel-less cable coils. This equipment is crucial for producers seeking consistent, protective wrapping for their finished wire and cable products before storage or shipment. Designed for reliability and ease of use, it ensures coils are securely wrapped with circinate film, utilizing materials like PVC, PE film, PP woven belt, or woven paper.
Key Features
The SHJLPACK Circinate Film Cable Coil Packaging Machine integrates several features to optimize the packaging process:
- Intuitive Touch Panel Interface: Simplifies machine operation and monitoring, allowing operators to manage settings easily.
- Motor-Driven Coil Handling: Ensures smooth and stable rotation of cable coils during the wrapping process, contributing to consistent packaging quality.
- Flexible Material Compatibility: Capable of working with various packaging materials, including PVC film, PE film, PP woven belt, and woven paper, offering versatility based on packaging needs.
- Integrated Automatic Labeling: Supports automatic label application for efficient product identification.
- Adjustable Coil-Holding Arms: Easily adapts to accommodate a range of cable coil sizes, enhancing machine flexibility.
- Advanced PLC Control System: Provides reliable and stable machine operation. The system can store up to 99 different packing specifications, allowing for quick setup changes between varying product types.
Technical Specifications
The table below outlines the key technical specifications for the available models:
| Model | Coil OD (mm) | Coil ID (mm) | Coil Width (mm) | Max. Coil Weight (kg) | Applicable Packaging Materials | Packing Speed (RPM) | Applicable Film Thickness (mm) |
|---|---|---|---|---|---|---|---|
| SH-P70 | 30-70 | 200-360 | 140 | 25 | PVC, PE | 45 | 0.04-0.07 |
| SH-P100 | 50-100 | 220-460 | 150 | 35 | PVC, PE | 45 | 0.04-0.07 |
| SH-P120 | 70-120 | 220-460 | 160 | 40 | PVC, PE | 55 | 0.04-0.07 |
| SH-P140 | 70-140 | 300-600 | 180 | 100 | PVC, PE, PP | 55 | 0.04-0.07 |
| SH-P180 | 90-180 | 320-600 | 200 | 150 | PVC, PE, PP, Woven belt | 75 | 0.04-0.07 |
| SH-P210 | 100-210 | 400-800 | 250 | 200 | PVC, PE, PP Woven belt | 75 | 0.04-0.07 |
Note: Specifications may vary based on specific model configuration and materials.
Benefits of the SHJLPACK Circinate Packaging Machine
Implementing this packaging solution offers significant advantages for cable manufacturers:
- Increased Efficiency: Automating the packaging process significantly speeds up throughput compared to manual methods.
- Consistent Package Quality: PLC control and stable handling ensure each coil is wrapped uniformly, providing reliable protection.
- Versatility: The ability to handle different coil sizes and packaging materials makes it suitable for a wide range of cable products.
- Reduced Labor Costs: Automated features minimize the need for manual intervention in wrapping and labeling.

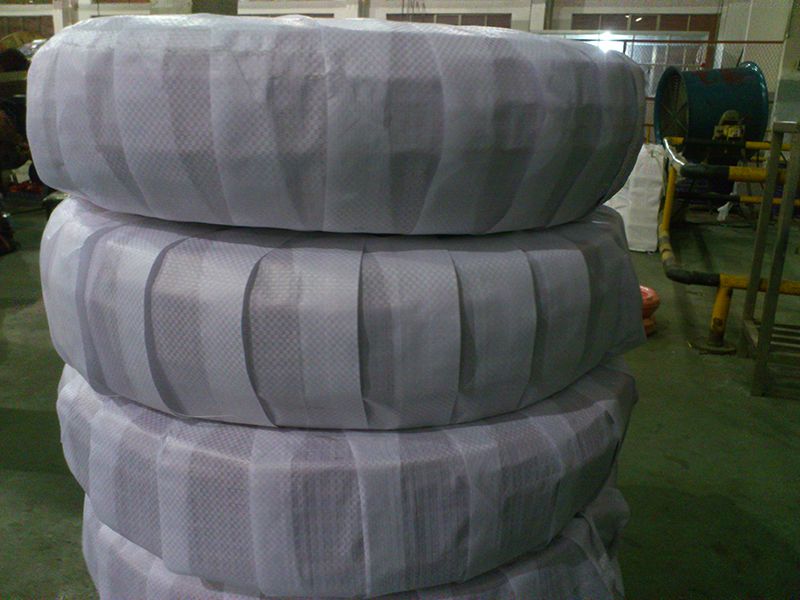

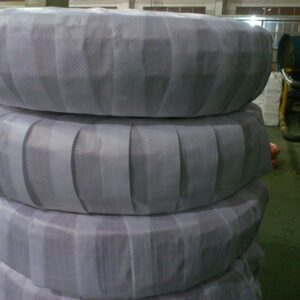

- Improved Product Protection: Secure film wrapping protects coils from dust, moisture, and handling damage, ensuring product integrity during transport and storage.
Applications
This machine is specifically designed for packaging reel-less coils of various types of wire and cable, including:
- Building Wire
- Power Cables
- Communication Cables
- Other flexible wire products
SHJLPACK provides reliable machinery solutions for the wire and cable industry, including efficient packaging equipment like the Circinate Film Cable Coil Packaging Machine.
