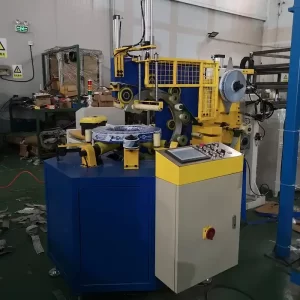

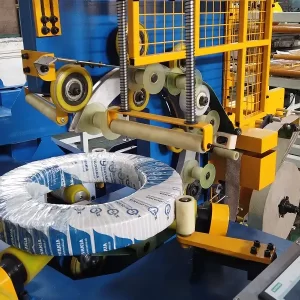

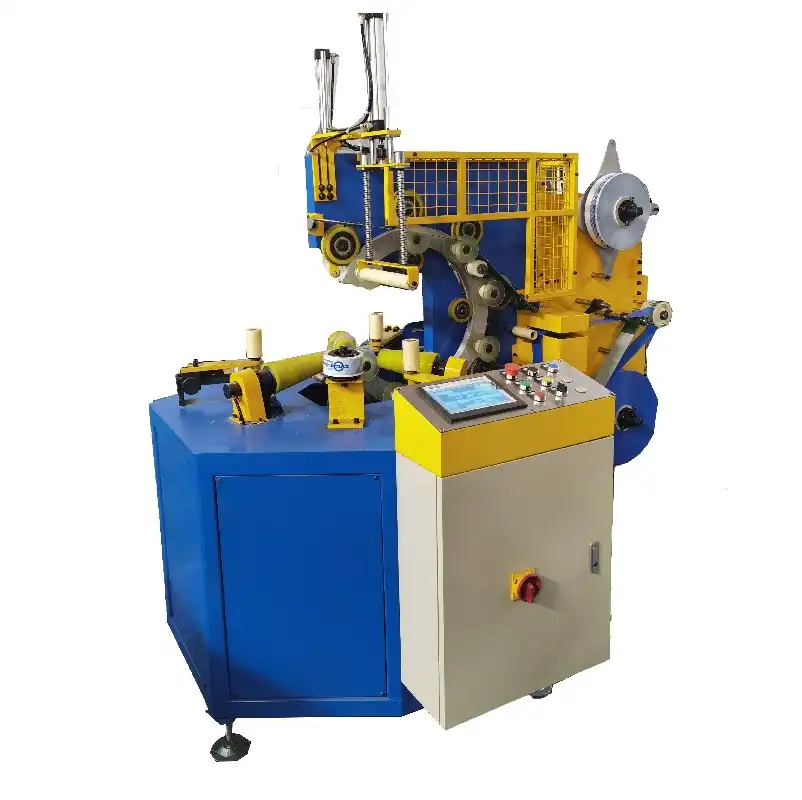

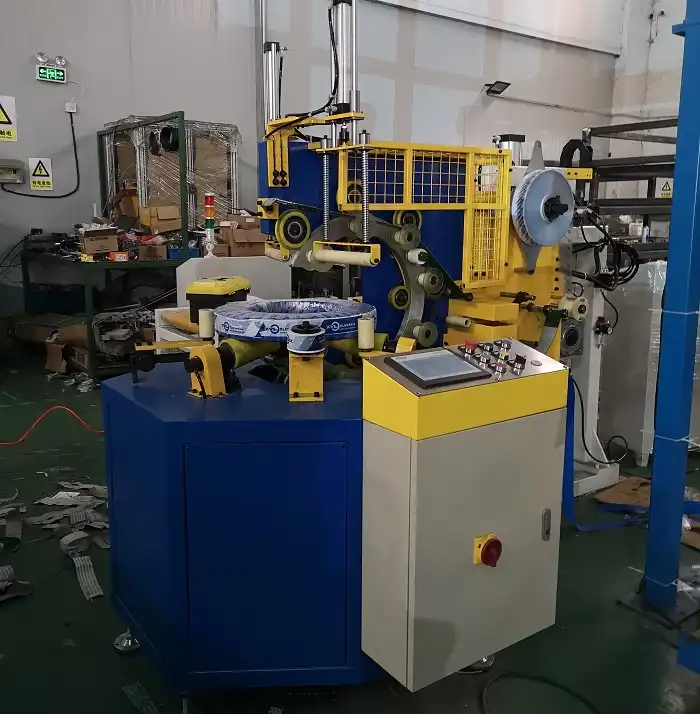

Bearing packing machine/bearing wrapping machine/axletree wrapping machine

Efficient Bearing Packaging Solutions by SHJLPACK

Protecting bearings, axletrees, and similar ring-shaped products from damage during storage and transportation is crucial for maintaining their quality and performance. The SHJLPACK bearing wrapping machine is engineered to provide reliable and efficient packaging, ensuring products arrive in perfect condition.

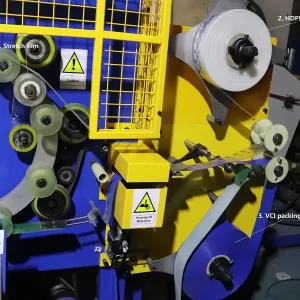

This specialized equipment automates the wrapping process, applying protective films like VCI (Volatile Corrosion Inhibitor) or PVC with adjustable tension and overlap. This not only secures the product but also shields it from environmental factors like moisture, dust, and corrosion.

Machine Specifications

The SHJLPACK bearing wrapping machine is built to handle a range of product sizes and weights. The typical parameters for models like the SH-BS-200 are outlined below:

These specifications highlight the machine's versatility in handling common bearing dimensions and weights while maintaining high throughput.

Key Features

The SHJLPACK bearing wrapping machine incorporates features designed for ease of operation, efficiency, and safety.

Control Features

• PLC Control: Automatic material calculation and precise process control managed by a Programmable Logic Controller.
• Adjustable Speeds: Ring and roller speeds can be fine-tuned using frequency converters to suit different packaging requirements.
• Adjustable Overlap: The overlapping rate of the packing material is adjustable for optimal coverage and material usage.
• Operational Modes: Offers both manual and automatic working modes for flexible operation.
• Automatic Stop: Includes a time relay for programmed automatic stopping.
• Soft Start & Stop: The wrapping ring features soft start, stop, and reset functions for smooth operation.
• Motor Protection: The driving motor is protected against overcurrent.
• Automatic Cutter: An integrated cutter handles various wrapping materials like paper, PP, HDPE, and woven film.

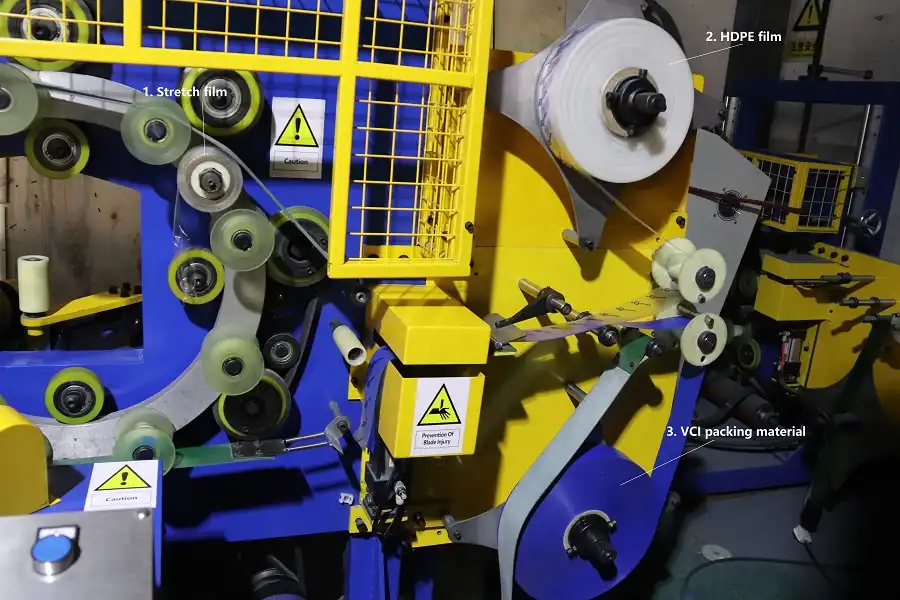

• Dual Material Feed: Supports two ways of feeding packing material: one roll fixed on the ring and another next to the wrapping station.

Operation Features

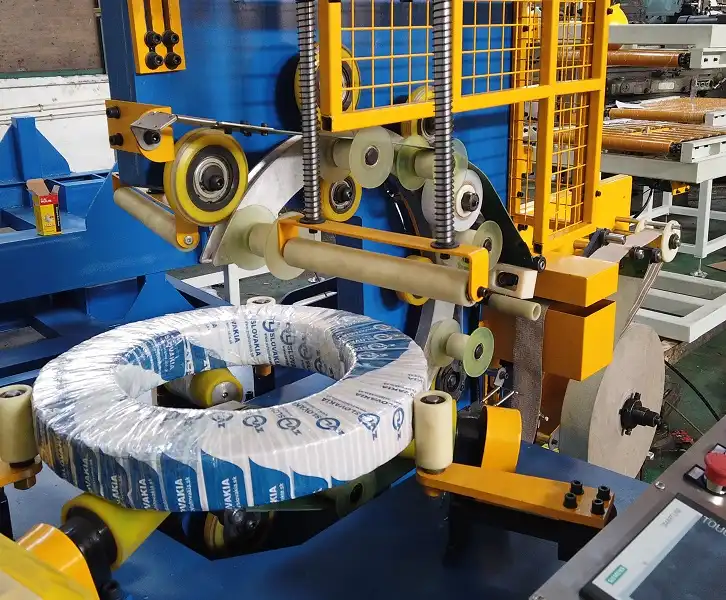

• Horizontal Packaging: Designed for horizontal packaging of coil-shaped products like bearings.
• Product Holding: A press-down device secures the coil, preventing shaking during wrapping.
• Easy Loading/Unloading: Special design facilitates simple manual loading and unloading of products and material rolls.
• Adjustable Support: Supportive rollers are easily adjustable to accommodate different coil outer diameters and prevent instability.
• Adjustable Tension: Packaging tension is adjustable via a specialized mechanical device.
• Consistent Tension: Features a consistent tension device suitable for wrapping coils ranging from small to large sizes.
• Safety Measures: Equipped with guardrails, soft starts, and stops to ensure safe operation.
• Wide Material Compatibility: Applicable with a wide range of packaging materials.
• Optional Features: Logo circle tapping is available as an optional feature.

These features contribute to a reliable, safe, and highly adaptable packaging process, making the SHJLPACK bearing wrapping machine a valuable asset in any production or warehousing environment handling circular industrial components.
