Automatic Horizontal Wire Coil Packaging Line WS-25

Overview of the WS-25 System

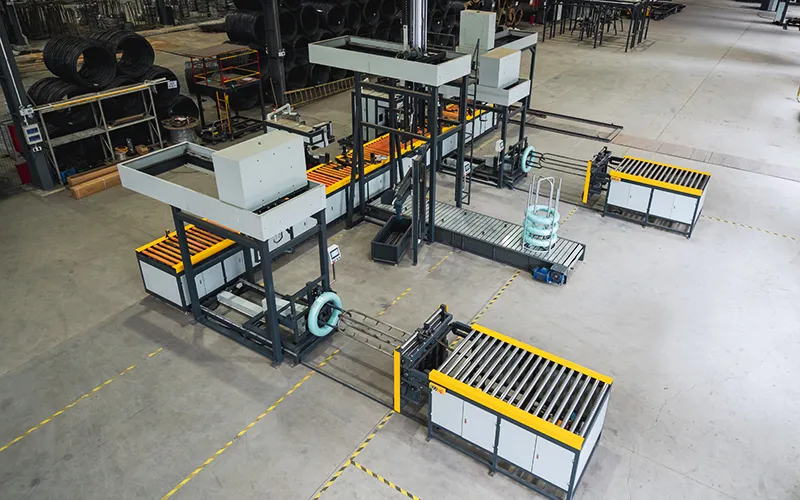

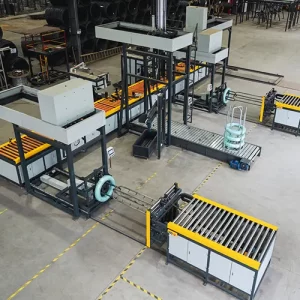

The WS-25 is a model within the range of automatic horizontal packaging lines specifically engineered for wire coils. This equipment integrates seamlessly into production lines, taking coils directly from manufacturing processes and applying a protective wrap as they pass horizontally through a rotating ring. The automation reduces manual labor and increases packaging speed and consistency.

Key Features

Automatic horizontal wire coil packaging lines like the WS-25 offer several advantages:

• Efficient Wrapping: Applies packaging material quickly and uniformly around the coil's outer diameter.
• Protection: Provides effective protection against environmental factors like dust, moisture, and corrosion during handling and storage.
• Labor Saving: Significantly reduces the need for manual wrapping, lowering labor costs and increasing safety.
• Consistent Quality: Ensures each coil is wrapped with consistent tension and overlap, leading to a professional finish.
• Integration: Designed to be integrated into existing production or handling lines.

Technical Specifications (WS-25 Model)

While specific parameters for the WS-25 model require detailed inquiry, automatic horizontal wire coil packaging lines typically handle a range of coil sizes and weights. Key specifications often include:

Specification	Detail / Typical Range (Specific WS-25 data needed)
Packaging Type	Horizontal Wrapping
Applicable Material	Wire Coils (various types)
Wrapping Material	Stretch film, LLDPE film, woven tape, etc.
Automation Level	Automatic
Max. Coil Outer Diameter	Varies by model (Specific WS-25 data needed)
Max. Coil Width	Varies by model (Specific WS-25 data needed)
Max. Coil Weight	Varies by model (Specific WS-25 data needed)
Throughput Speed	Coils per hour (Specific WS-25 data needed)
Power Requirements	Standard industrial power
Control System	PLC based (Typical)

Note: Specific coil dimensions, weight capacity, and speed for the WS-25 model should be confirmed based on exact machine configuration.

How Horizontal Wrapping Works

In a horizontal wire coil packaging line, coils are transported via conveyor through the center of a rotating ring. The packaging material (like stretch film) is held in a dispenser on this ring. As the ring spins, the material is applied helically around the coil's circumference. The coil is simultaneously advanced through the ring at a controlled speed, ensuring a continuous, overlapping wrap that covers the entire outer surface.

Applications

Automatic horizontal wire coil packaging is widely used in the wire manufacturing industry for packaging various types of wire coils, including:

• Steel wire
• Aluminum wire
• Copper wire
• Welding wire
• Barbed wire
• Other metal wires and cables in coil form

This type of packaging is suitable for securing coils for transport, storage, and protection against environmental elements.

Benefits of Automated Packaging

Implementing an automatic system like the WS-25 offers significant operational benefits:

• Increased Productivity: Faster wrapping cycles compared to manual methods.
• Reduced Material Waste: Automated systems optimize film usage with consistent tension and overlap.
• Improved Safety: Minimizes manual handling of heavy or unstable coils during packaging.
• Enhanced Product Appearance: Provides a neat, professional, and consistent package finish.
• Reliability: Designed for continuous operation in industrial environments.

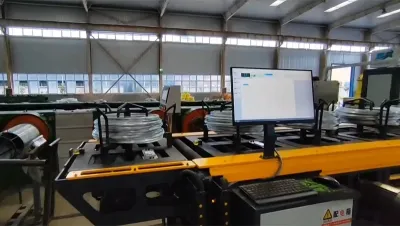

For a visual demonstration of the Automatic Horizontal Wire Coil Packaging Line WS-25, a video is available showcasing the machine in operation.
