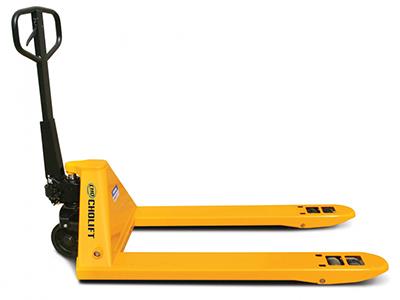

The SBA-50 Heavy Duty Pallet Jack is specifically designed to handle exceptionally heavy loads that typical pallet trucks cannot manage. Its core strength lies in its robust construction and high-capacity hydraulic system, making it an essential tool for applications involving substantial weight.
Key Features for Heavy Duty Performance:
- High Capacity Hydraulic Pump: Features a special, one-piece cast hydraulic pump. This integrated design minimizes the risk of looseness and leakage, ensuring consistent and reliable lifting power crucial for heavy loads.
- Durable Construction: Manufactured from high-strength alloy steel, the chassis and forks are built to withstand the stresses of transporting heavy materials, contributing to a long operational life, typically between 3 to 5 years under normal use.
- Overload Protection: An integrated active safety valve is set to prevent overloading the pallet jack beyond its rated 5000kg capacity. This critical safety feature protects both the equipment from potential damage and the operator from hazardous situations.
- User-Friendly Design: Despite its heavy-duty capabilities, the pallet jack is designed for efficient and easy operation. The humanized design aims to lower labor intensity, allowing operators to move heavy pallets with greater ease and productivity.
- Versatile Application: Suitable for use in a wide range of environments where heavy loads are a regular part of the workflow, providing a versatile solution for various industrial and warehousing needs.
Technical Specifications (SBA-50 Model):
| Specification | Unit | Value |
|---|---|---|
| Load Capacity / Rated Load | Q (kg) | 5000 |
| Load Center Distance | c (mm) | 500 |
| Net Weight | kg | 110 |
| Steering Wheel Size | mm | Φ200×50 |
| Load Wheel Size | mm | Φ85×80 |
| Lifting Height | h3 (mm) | 207 |
| Height of Drawbar (max./min.) | h14 (mm) | 1234 / 1224 |
| Lowered Height | h13 (mm) | 77 / 88 |
| Fork Dimensions (Thickness/Width/Length) | s/e/l | 57 / 160 / 1150(1220) |
| Distance Between Fork-Arms | b5 (mm) | 550 / 685 |
| Aisle Width (Pallets 1000×1200 crossways) | Ast (mm) | 1730 / 1800 |
| Aisle Width (Pallets 800×1200 crossways) | Ast (mm) | 1780 / 1800 |
This heavy-duty pallet jack is built to meet the demands of challenging material handling tasks, offering a reliable and powerful solution for moving loads up to 5 tons. Its robust components and safety features ensure dependable performance in rigorous operational settings.
