Precision Spotting for Automotive Molds

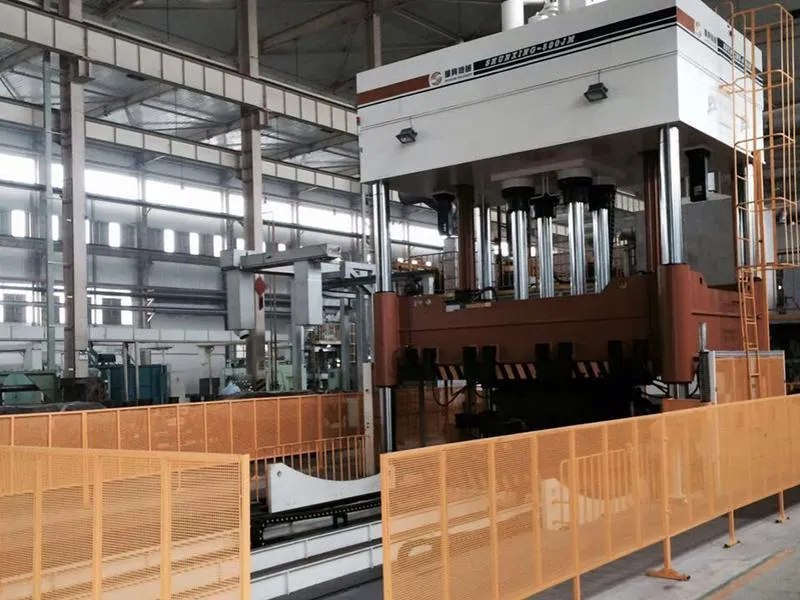

In 2016, a major player in the automotive sector significantly upgraded its mold manufacturing capabilities. This investment included the acquisition of a 500T Die Spotting Press, a critical machine for ensuring the precision and quality of large and complex molds.
Die spotting is a fundamental process in mold making, where the mold halves are pressed together to verify contact surfaces and make final adjustments. For the demanding standards of the automotive industry, achieving perfect contact between mold components is essential for producing high-quality, consistent parts.
Key Feature: Four Spotting Oil Cylinders
A defining technical feature of this 500T press, part of the JM series acquired by the manufacturer, is its advanced hydraulic system utilizing four spotting oil cylinders. This design is specifically chosen to address a critical need in high-precision mold work.
The four-cylinder configuration ensures that pressure is distributed uniformly across the entire surface of the mold during the spotting process. This is particularly important when working with large molds or during high-pressure operations, where uneven force can lead to mold distortion or inaccurate fitting.
Benefits for Automotive Production
The equal force application provided by the four-cylinder system translates directly into enhanced precision. This accuracy is vital for the automotive industry, where even slight imperfections in molds can affect the performance and aesthetics of vehicle components.
Key benefits facilitated by this design include:
- Superior Mold Half Matching: Ensures mold halves fit together perfectly.
- Reduced Errors: Minimizes discrepancies in the mold surface.
- Consistent Quality: Helps produce molds that yield consistent part quality during production runs.
- High-Pressure Capability: Maintains accuracy even under significant hydraulic pressure.
This type of high-tonnage, precision press is vital for the mass production of complex automotive molds, contributing directly to the efficiency and quality of vehicle component manufacturing.
Technical Overview
A summary of the key technical aspects mentioned:
| Feature | Detail | Benefit |
|---|---|---|
| Capacity | 500 Tons (500T) | Handles large, heavy automotive molds |
| Hydraulic System | 4 Spotting Oil Cylinders | Ensures uniform pressure distribution |
| Spotting Process | Supports High Pressure | Allows precise mating under load |
| Application Focus | Automotive Mold Finishing | Meets industry requirements for accuracy |
