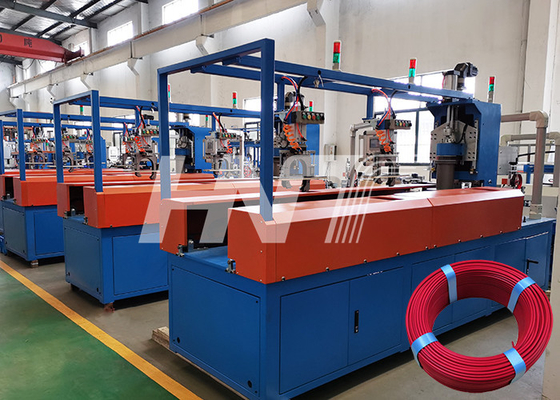

4 Point Cable Wire Coiler And Binding Machine With Coil Max. OD600mm

$20,000.00

The SHJLPACK 4 Point Cable Wire Coiler and Binding Machine is designed for efficient cable coiling and packaging. Suitable for wire diameters up to 10mm and coil OD up to 600mm, this machine features 4 binding points for secure packaging. It offers automatic operation with a touch screen PLC control system and can connect directly to extrusion lines for non-stop coiling. Key parameters include Coil OD Max. 600mm and Wire Diameter Max. 15mm (depending on model).

Category:

Automatic Cable Coiling and Binding Machine

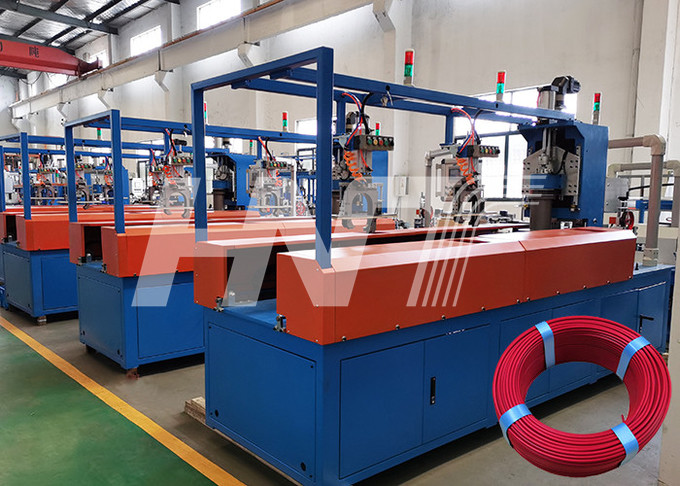

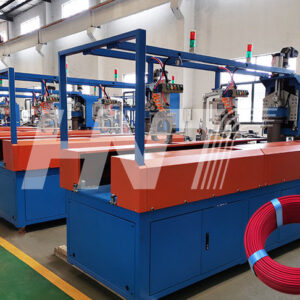

This automatic Cable Coiling Machine, manufactured by SHJLPACK, is engineered for the high-efficiency coiling and binding of various types of cables and wires. It is a versatile solution that can function as a standalone unit or be seamlessly integrated into existing cable extrusion lines for continuous operation.

Key Features

Designed for reliability and ease of use, the SHJLPACK Cable Coiling and Binding Machine incorporates several important features:

  • Integrated or Standalone Operation: Can be connected directly with an extrusion line for non-stop production or used independently.
  • Automatic Fault Detection: The system includes an automatic detection function that identifies issues and provides warning messages to the operator, minimizing downtime.
  • User-Friendly Control: Operation is managed via a combination of a touch screen interface and PLC (Programmable Logic Controller) system.
  • Intuitive Operator Panel: The control panel is equipped with a touch screen and speed adjustment buttons for simple control.
  • Sparker Contact: The machine's PLC includes a power frequency sparker contact point (note: the power frequency spark machine itself is provided by the customer).

Technical Specifications

The SHJLPACK Cable Coiling and Binding Machine is available in several models to accommodate different cable sizes and coiling requirements. The table below outlines the technical parameters for various models:

Model Coil Height (mm) Outer Diameter (mm) Inner Diameter (mm) Wire Diameter (mm) Rotating Speed (RPM)
SH-1246 50 - 100 200 - 460 140 - 220 0.8 - 10 800
SH-1860 60 - 180 20 - 600 180 - 250 5 - 15 200
SH-2060 60 - 200 220 - 600 180 - 250 5 - 15 150
SH-2480 80 - 240 300 - 800 250 - 320 10 - 25 100

Note: Specific models may have variations in banding points and maximum coil OD. The SH-1246 model is highlighted with 4 banding points and Max Coil OD 300mm and Max Wire Dia 10mm in some specifications, while the table provides a broader range across different SHJLPACK models including those up to OD600mm or OD800mm.

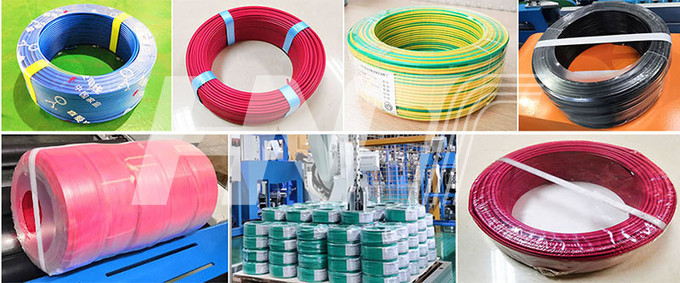

This machine is a robust solution for the packaging needs of the wire and cable industry, ensuring coils are neatly wound and securely bound.
